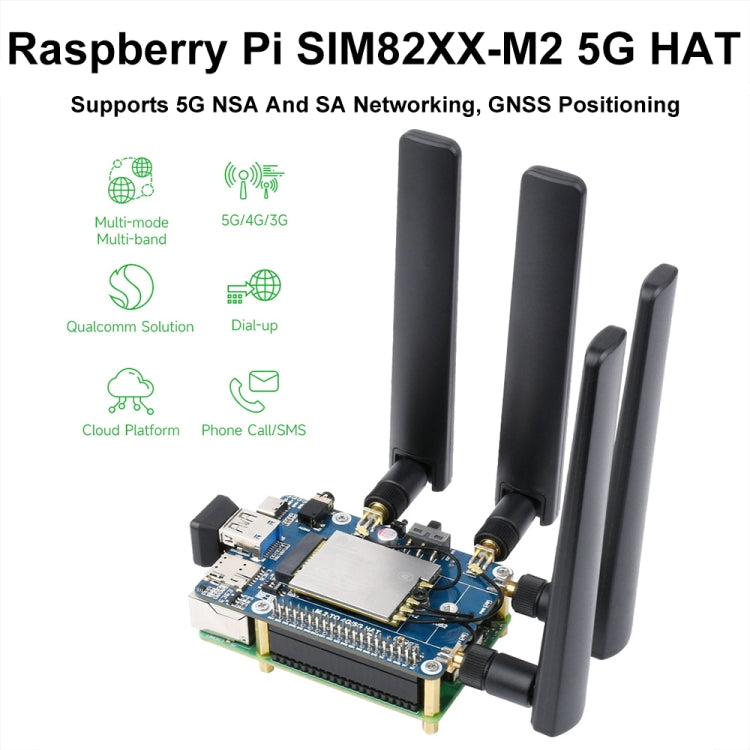

Waveshare SIM8262E-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, 5G/4G/3G Compatible(23254)

• Product type: Wireless Router
• Brand: Waveshare
• Compatibility: Raspberry Pi
• Material: Not specified
• Key feature: Supports 5G NSA and SA networking
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Computer & Networking

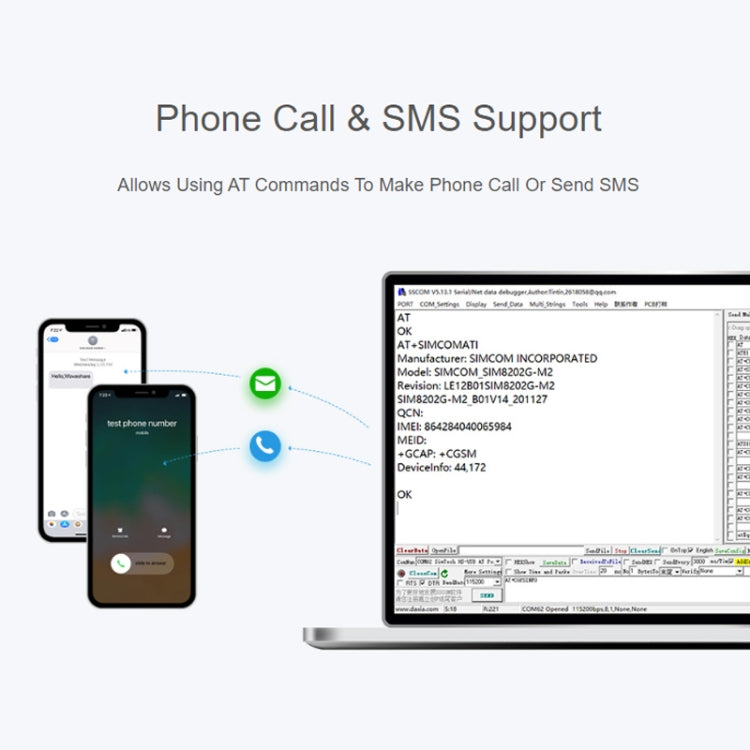

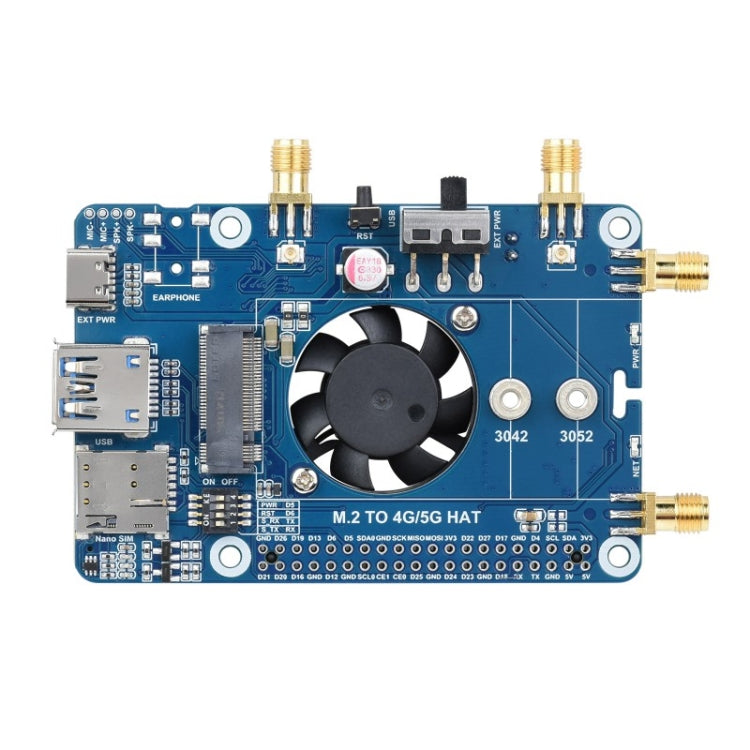

Features:1. Based on Qualcomm platform, supports 5G NSA and SA networking, and supports multi-mode and multi-band2. Multi-constellation dual-frequency positioning: GPS, Beidou, Glonass, Galileo, QZSS3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano motherboard for high-speed 5G communication4. Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, set by DIP switch5. Onboard UART, PWR and RST control pins with built-in voltage level converter enabled via DIP switch for use with hosts such as Raspberry Pi or Arduino6. The onboard USB-C interface can be turned on by a switch to connect an independent power supply to the module, supporting more loads and providing stable and flexible power supply.7. Onboard power switch, reset button and LED indicator light for easy switching on and off or monitoring module operating status8. 4 x SMA to IPEX antenna connectors with pre-soldered SMA terminals for antenna connection9. 2 x SIM card slots, dual SIM card single standby, can be switched by AT command10. Onboard audio jack and audio decoder for audio operations such as making phone calls11. High-efficiency power circuit, output current up to 3AProduct parameters:1. 5G standard: 3GPP R162. Chip: Qualcomm Snapdragon X623. Sub-6G: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78, n794. LTE-FDD: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B325. LTE-TDD: B38, B39, B40, B41, B42, B436. WCDMA: B1, B5, B87. GNSS: GPS, GLONASS, Beidou, Galileo, QZSS8. Sub-6G: 2.4 Gbps (DL) / 500 Mbps (UL)9. LTE: 1 Gbps (downlink)/200 Mbps (uplink)10. HSPA+: 42 Mbps (downstream)/5.76 Mbps (upstream)11. Operating system: Windows/Linux/Android12. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.013. Dial-up: RNDIS, NDIS, PPP, MBIM14. SMS: supports MT, MO, CB, text, PDU15. Firmware upgrade: Support firmware upgrade through USB port16. SIM card: 1.8V/2.95V17. Antenna: suitable for 3G/4G/5G/GNSS, 6 × IPEX-4 connector, 4 × IPEX-4 connector18. Power supply: 3.135-4.4V
