Product details
Description

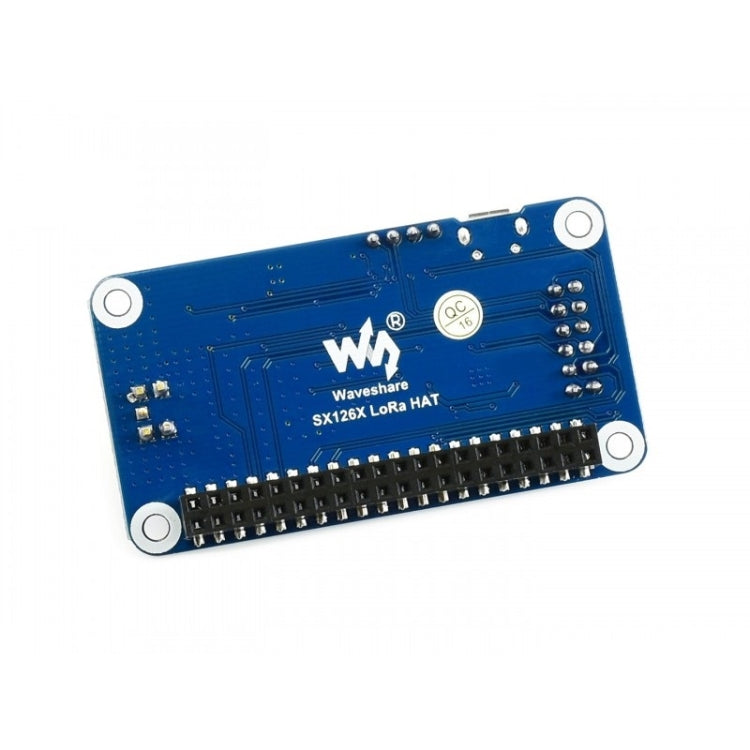

The Waveshare SX1262 LoRa HAT is a communication module designed for Raspberry Pi that operates on the 868MHz frequency band. It is suitable for applications such as smart home systems and industrial control, providing a communication range of up to 5km.
- Type: LoRa HAT
- Frequency Band: 868MHz
- Communication Range: Up to 5km
- Modulation Technology: LoRa spread spectrum
- Signal Channels: 81 available channels
- Transmit Power: 22.0dBm (programmable)
- Receive Sensitivity: -147dBm (at 2.4kbps)
- Radio Rate: 0.3kbps to 62.5kbps (programmable)
- Power Supply: 5V
- Power Consumption: Transmit current: 133mA, Receive current: 11mA, Sleep current: 2uA
- Communication Interface: UART (TTL level)
- Baud Rate: 1200bps to 115200bps (default 9600bps)
- Packet Length: Programmable up to 240 Bytes
- Cache: 1000 Bytes
- Operating Temperature: -40°C to 85°C
- Dimensions: 7cm x 12cm x 2cm
- Weight: 69g

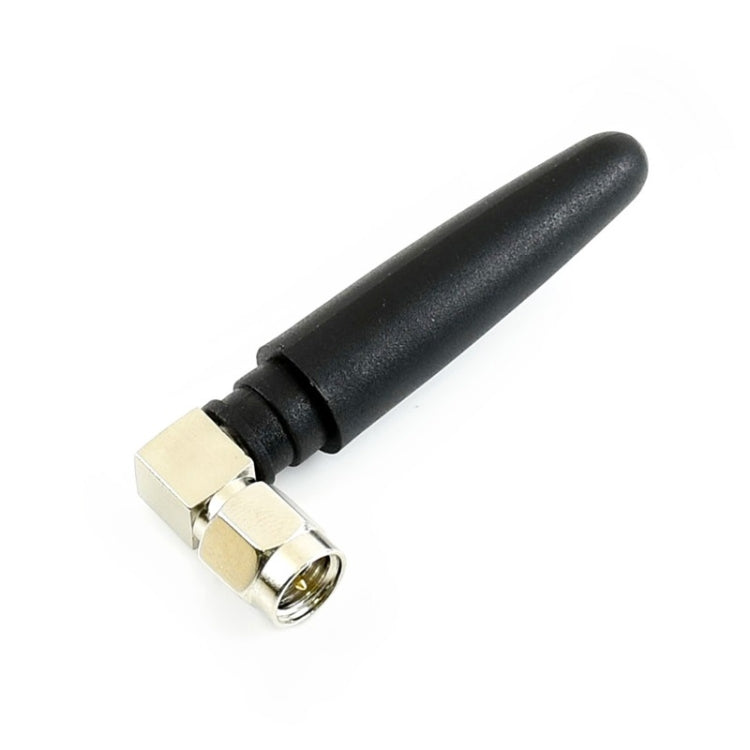

- Included Components: SX1262 868MHz LoRa HAT, USB type A to micro plug cable, 868MHz antenna

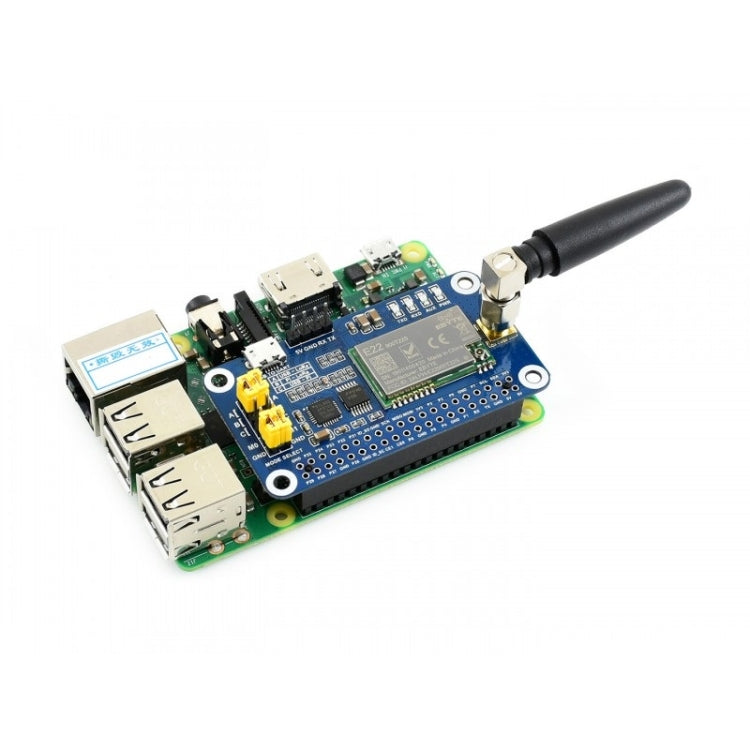

- GPIO Compatibility: Standard Raspberry Pi 40PIN GPIO extension header

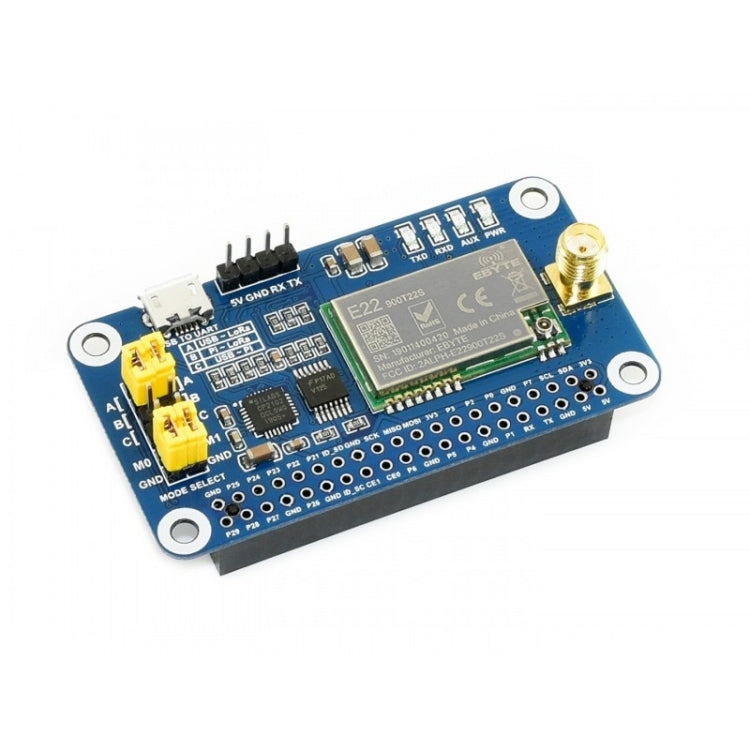

- Onboard Components: CP2102 USB to UART converter, voltage level translator, UART header, SMA and IPEX antenna connectors, LED indicators
- Applications: Smart home, industrial sensors, building automation, smart meters, IoT applications
