Description

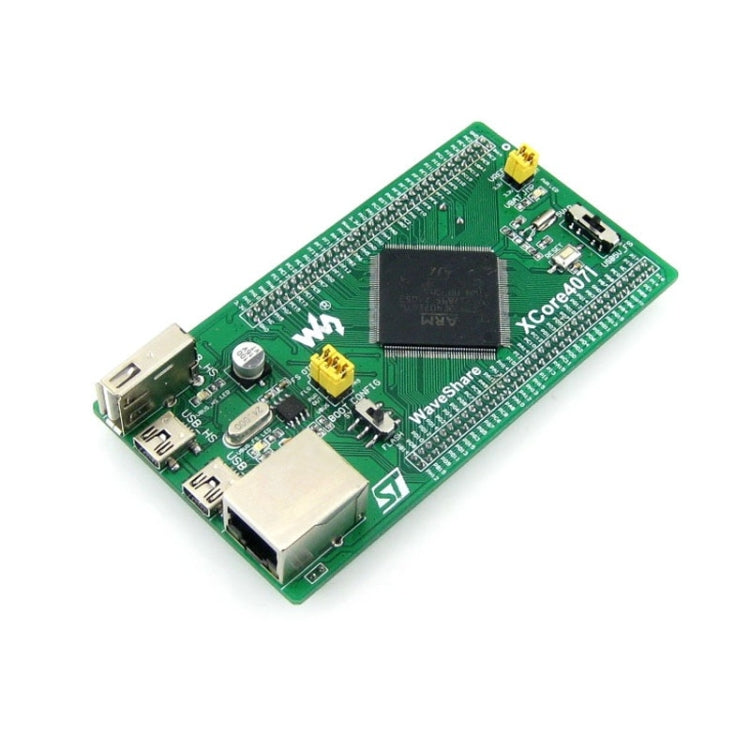

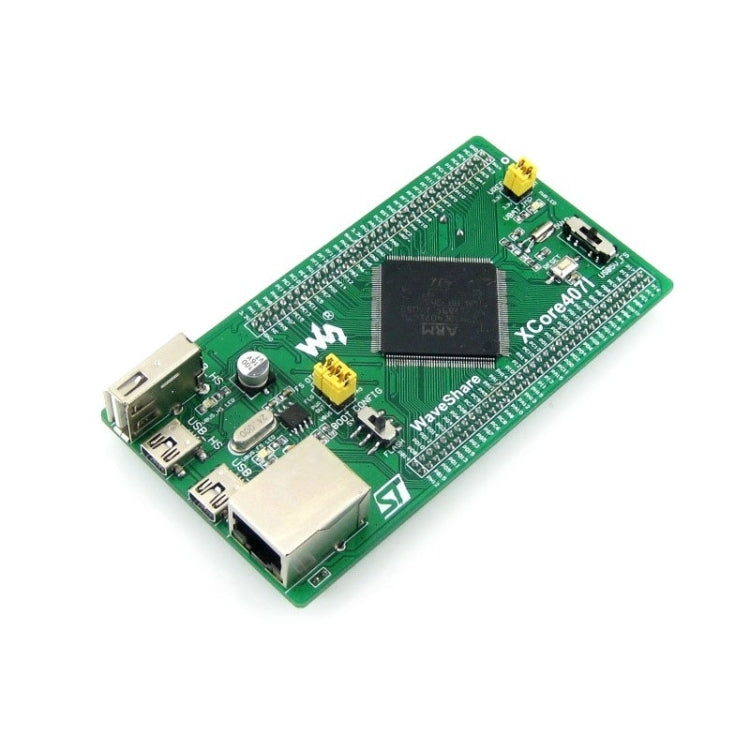

The XCore407I is an STM32 MCU core board designed for development applications. It is suitable for integrating into user systems requiring high-performance processing capabilities.
- Product Type: MCU Tools
- Compatibility: STM32F4 Core Board
- Material: Not specified
- Key Feature: Onboard STM32F407IGT6 MCU
- Clock Circuit: Yes
- USB Power Management: Yes
- Onboard Devices: USB HS PHY, Ethernet PHY, 1G Bit NandFlash
- Connectors: USB HS (mini/type A), USB FS (mini), Ethernet (RJ45)
- Idle I/O Ports: Accessible on pin headers
- Pin Header Pitch: 2.0mm
- Operating Frequency: 168MHz
- Core: Cortex-M4 32-bit RISC
- Operating Voltage: 1.8V-3.6V
- Package: LQFP176
- Flash Memory: 1024kB
- SRAM: 192+4kB
- MCU Communication Interfaces: 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x FSMC, 1 x SDIO, 2 x CAN, 1 x USB 2.0, 1 x 10/100 Ethernet MAC, 1 x 8 to 14-bit parallel camera interface
- AD Converters: 3 x AD (12-bit, 1μs, shares 24 channels)
- DA Converters: 2 x DA (12-bit)
- Debugging/Programming: Supports JTAG/SWD interfaces, supports IAP
- Onboard Power Management Devices: MIC2075-2, MIC2075-1, AMS1117-3.3
- Crystals: 8M, 24M, 50M, 32.768K
- Power Supply: Powered from 5Vin or USB connection
- Boot Mode Switch: Configures BOOT0 pin
- Power Indicator: Yes
- USB FS LED: Yes
- USB HS LED: Yes
- Reset Button: Yes
- Package Contents: XCore407I development board x 1, USB type A to Mini-B cable x 1, Software CD x 1
