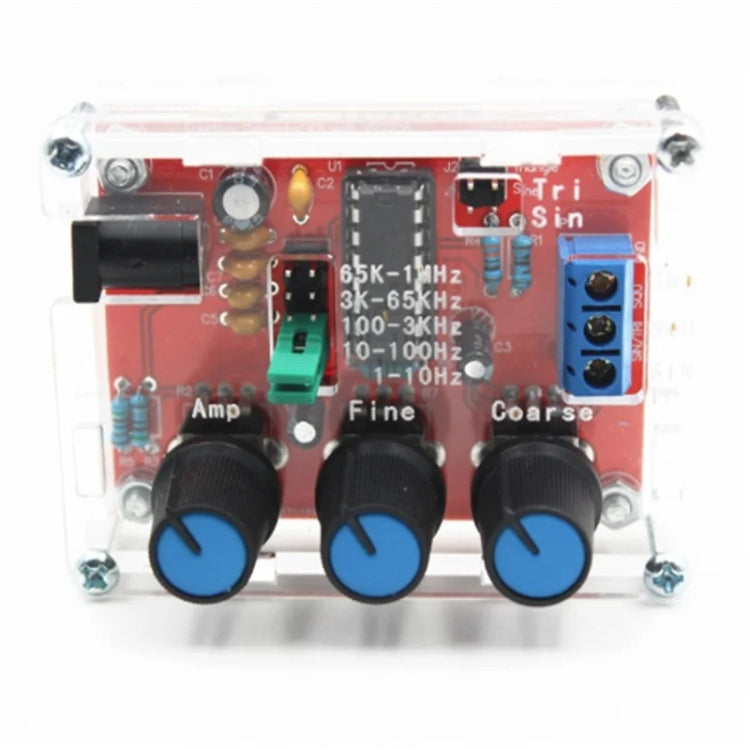

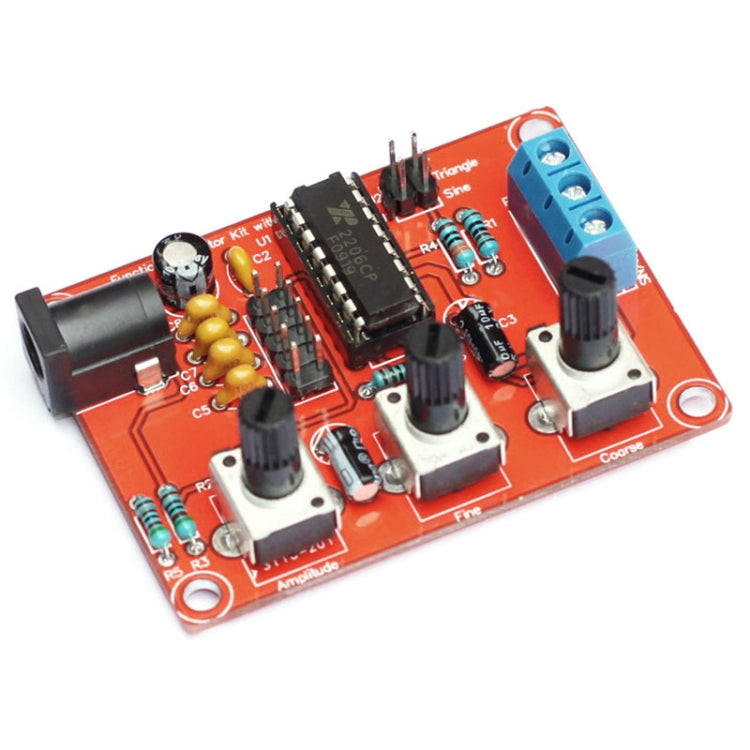

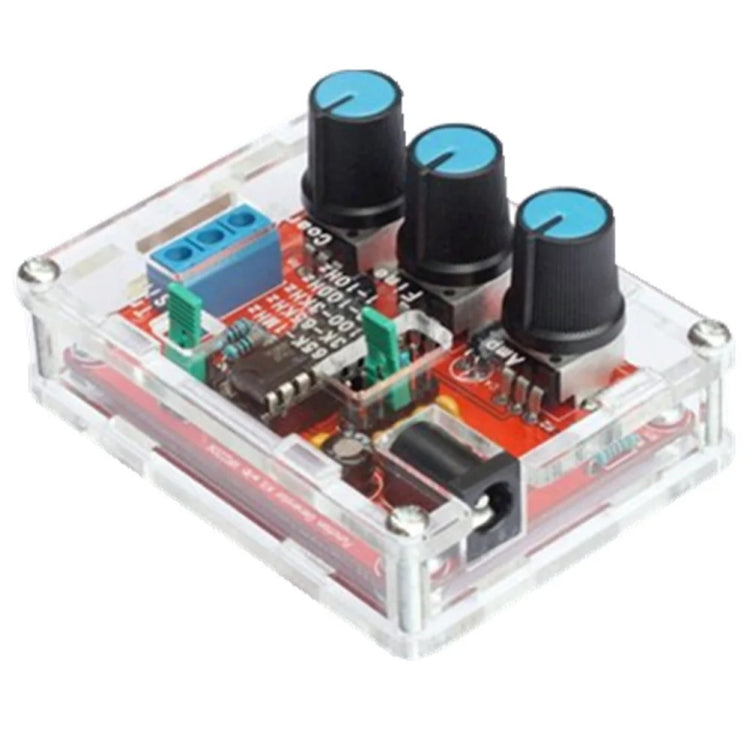

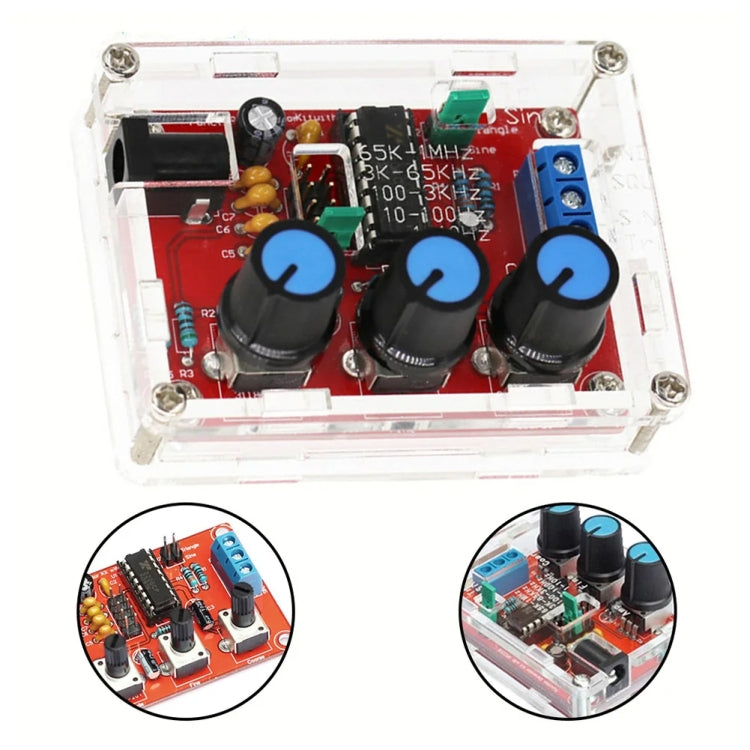

XR2206 High Precision Signal Generator DIY Kit Sine Triangle Square Waves 1Hz-1MHz Frequency Range, Specification: Parts

The XR2206 High Precision Signal Generator DIY Kit is designed to generate sine, triangle, and square waveforms. It is suitable for electronics projects requiring precise waveform generation within a frequency range of 1Hz to 1MHz.

• Product Type: Signal Generator DIY Kit
• Compatibility: XR2206

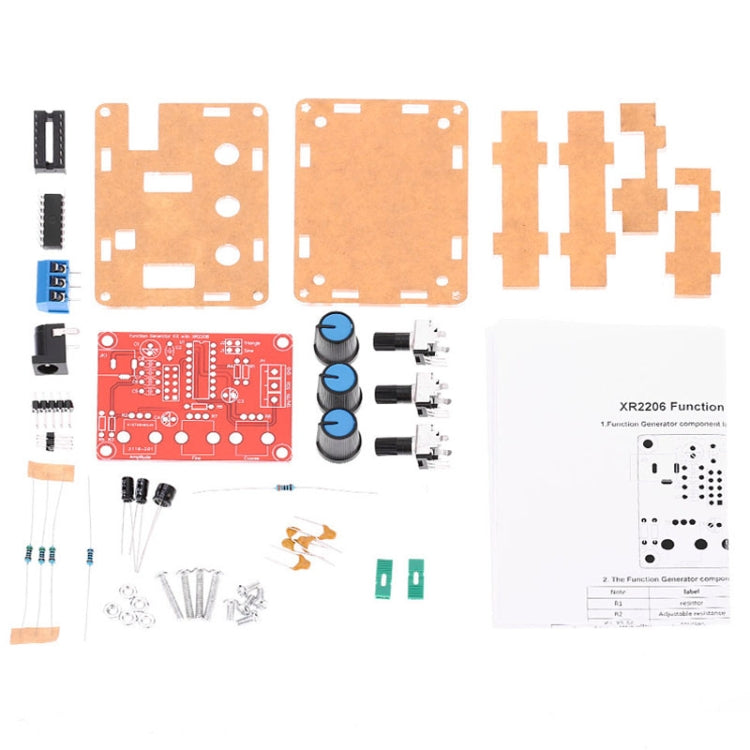

• Material: Parts
• Power Supply Voltage: 9-12V DC input
• Waveforms: Sine, triangle, and square waves
• Impedance: Approximately 600 ohms
• Frequency Range: 1Hz to 1MHz
• Sine Wave Specifications:
• Amplitude: 0-3V (at 9V DC input)
• Distortion: Less than 1% (at 1kHz)
• Flatness: +0.05dB (1Hz-100kHz)
• Square Wave Specifications:
• Amplitude: 8V (no load at 9V DC input)
• Rise Time: Less than 50ns (at 1kHz)
• Fall Time: Less than 30ns (at 1kHz)
• Symmetry: Less than 5% (at 1kHz)
• Triangle Wave Specifications:
• Amplitude: 0-3V (at 9V DC input)
• Linearity: Less than 1% (up to 100kHz)
• Features:
• 5-bit precision resolution
• Frequency adjustment with coarse and fine tuning
• Direct insertion components for simple installation
• External power supply compatibility (9-12V or 9V battery)
• Assembly Precautions:
• Weld components from low to high, starting with capacitors, resistors, and diodes
• Weld IC sockets and terminals last
• Use diagonal pliers to cut short pins after assembly
• Debugging Steps:
• Ensure correct IC orientation during installation
• Check for reverse IC installation
• Power supply connection: 5.5 x 2.1 port, negative pole inside and outside
• Power supply voltage: 9-12V
• Usage Steps:
• Insert J1 jumper cap for sine wave output
• Insert J2 jumper cap for triangle wave output
• SQU blue terminal outputs pulse
• Adjust amplitude for sine and triangle waves
• Fine-tune frequency with FINE adjustment
• Coarse frequency adjustment available
