Yahboom 1DOF Electric Platform For Robot Car Black

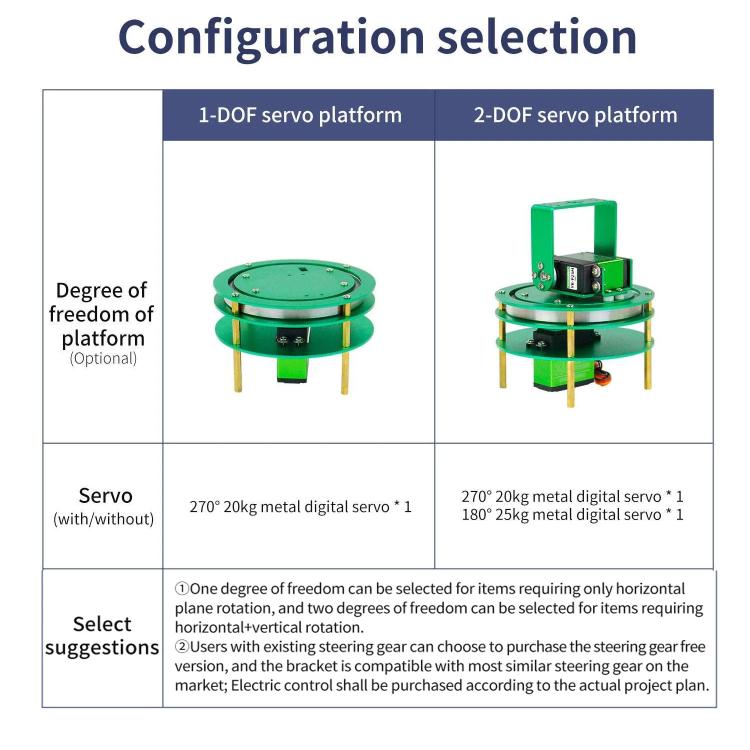

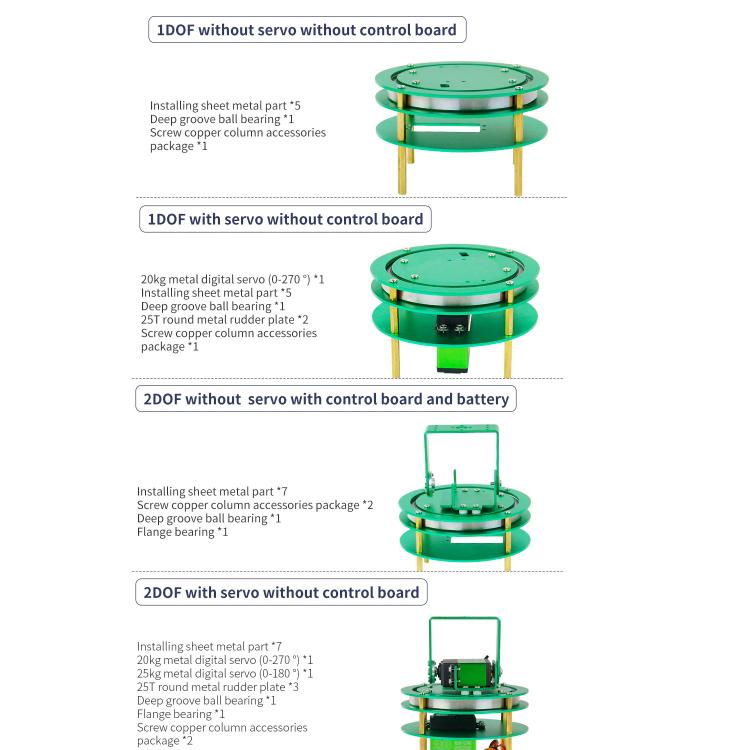

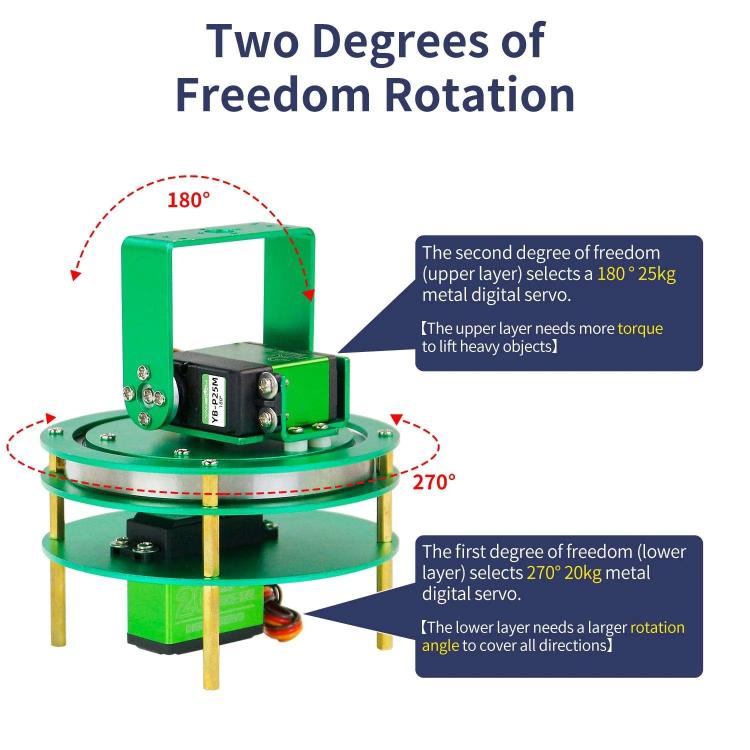

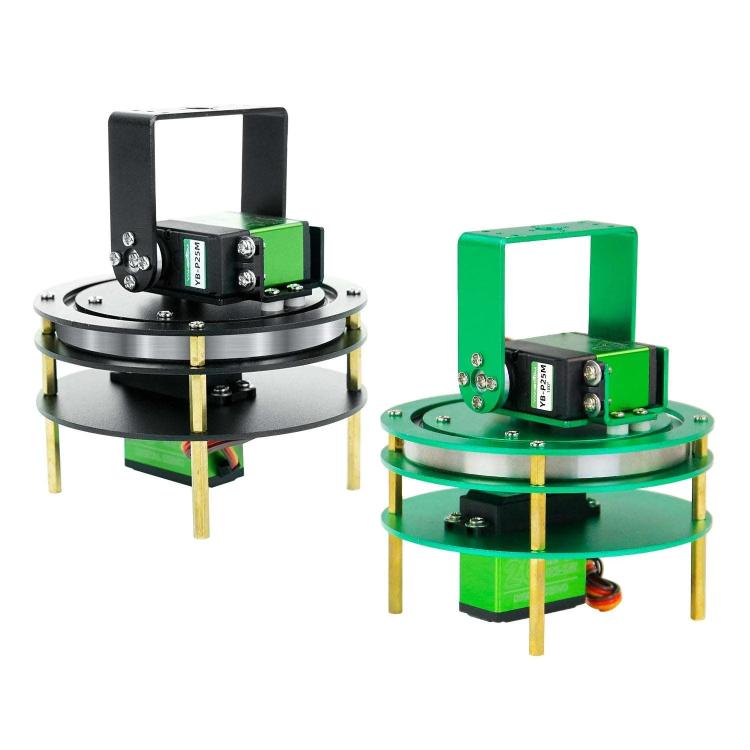

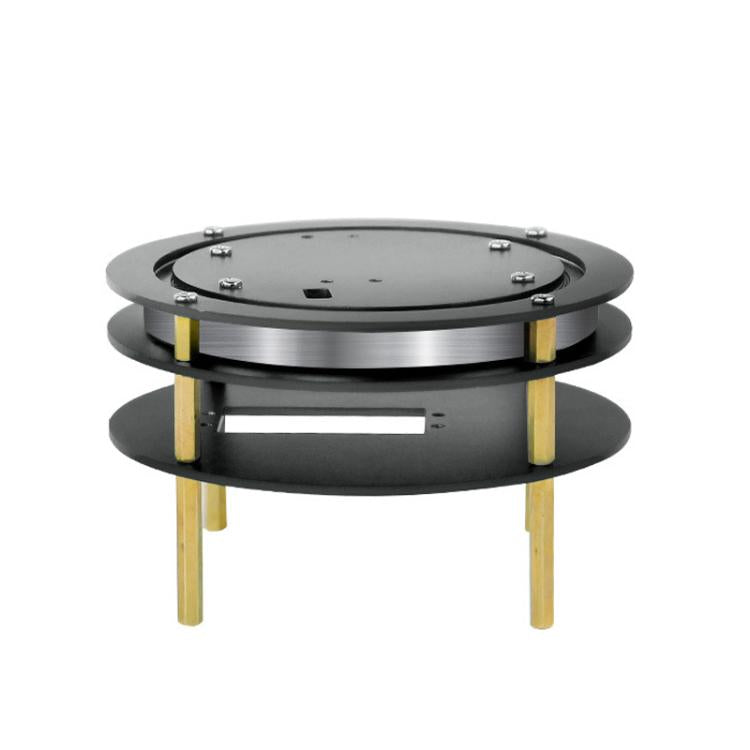

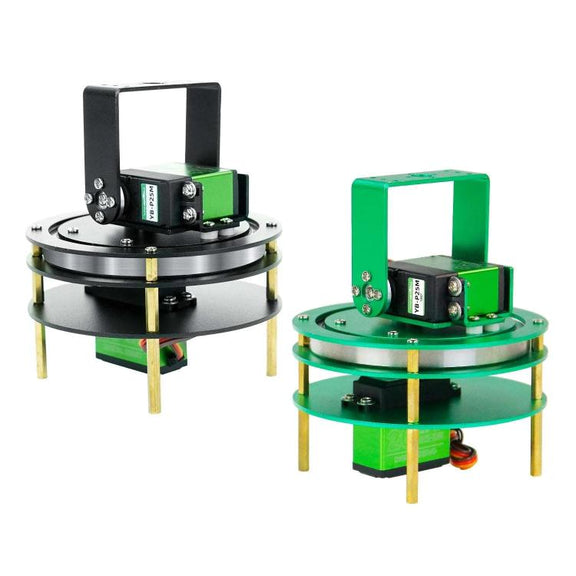

1. Two-dimensional electric pan-tilt, specially designed for electronic design competitions, available in one or two degrees of freedom, and with optional servo configurations (suggestions for selection: 1. For projects that only require horizontal rotation, choose one degree of freedom; for projects that require both horizontal and vertical rotation, choose two degrees of freedom. 2. Users who already have servos can purchase the version without servos, and the bracket is compatible with most similar servos on the market.)

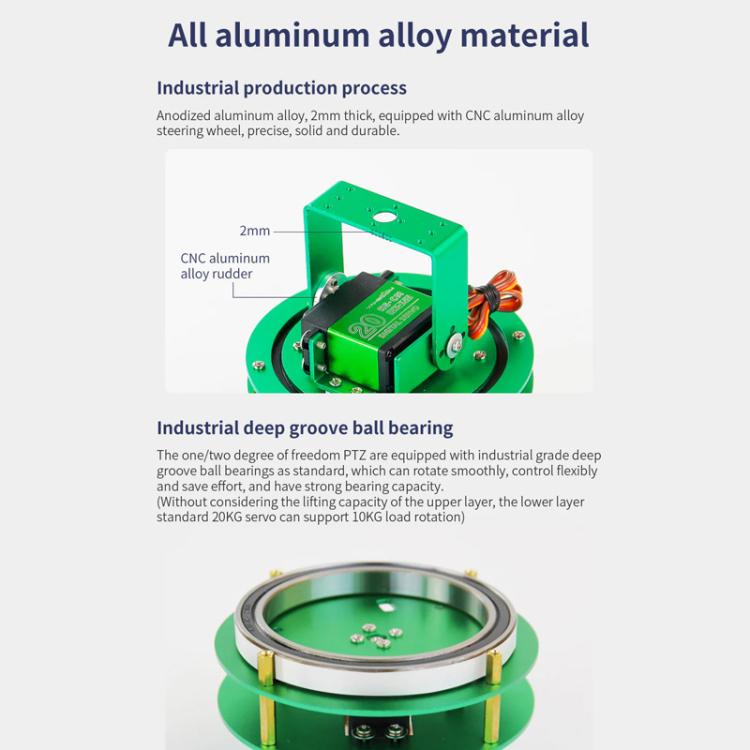

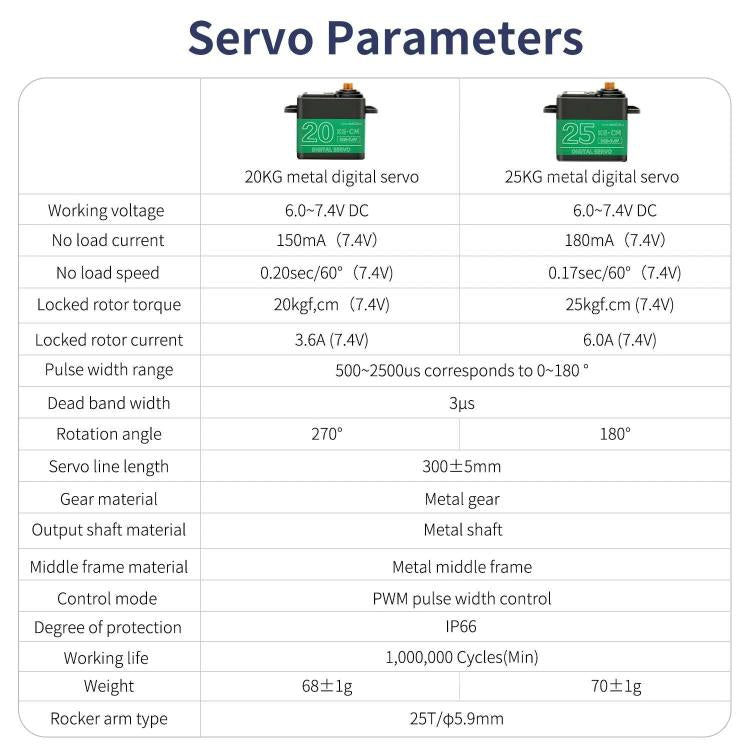

2. Equipped with industrial-grade deep groove ball bearings: Both one and two-degree-of-freedom pan-tilts are standard with industrial-grade deep groove ball bearings, ensuring smooth and stable rotation, flexible and effortless control, and strong load-bearing capacity. (Without considering the load-bearing capacity of the upper layer, the standard 20KG servo on the lower layer can support a 10KG load.)
3. Made of all-aluminum alloy materials: Anodized aluminum alloy, 2mm thick, with a CNC aluminum alloy servo plate, precise, sturdy and durable.

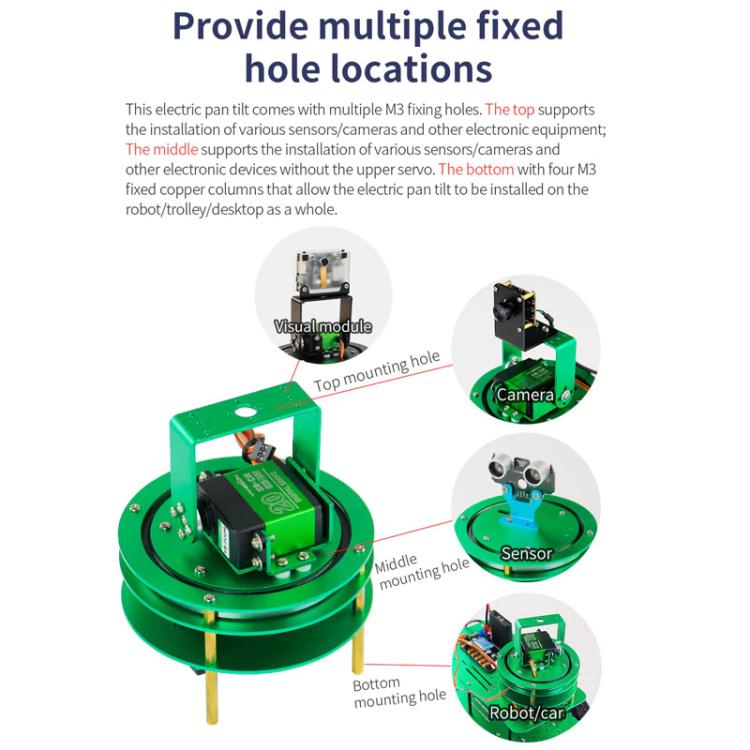

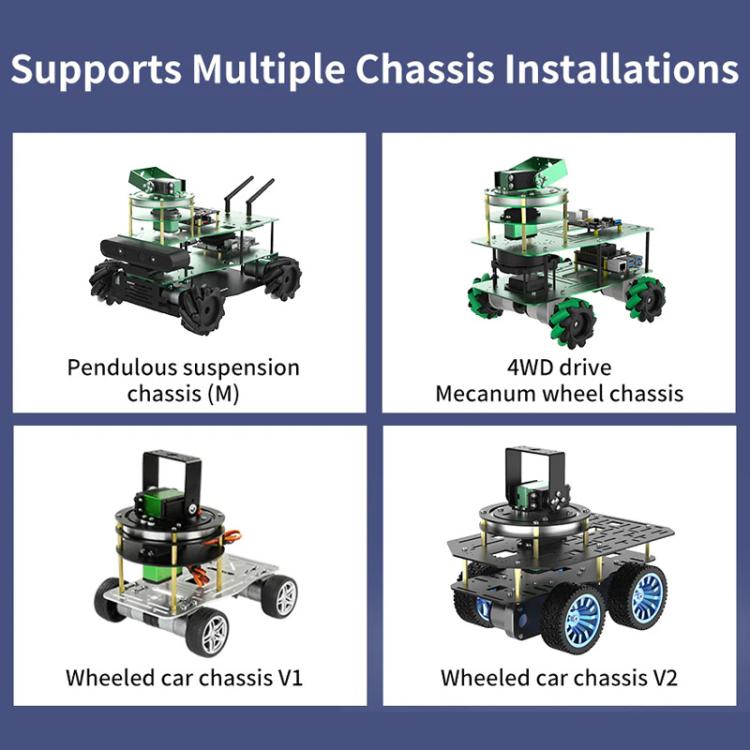

4. Multiple mounting holes provided: The two-dimensional electric pan-tilt bracket offers multiple M3 mounting holes. The top supports the installation of various sensors, cameras, and other electronic devices; the middle layer can support the installation of various sensors, cameras, and other electronic devices when the upper layer servo is not installed. The bottom has four M3 fixed copper columns that allow the pan-tilt to be installed on robots, carts, or desks as a whole.
5. Rich development materials are included, and 3D model files are provided.
