Product details
Description

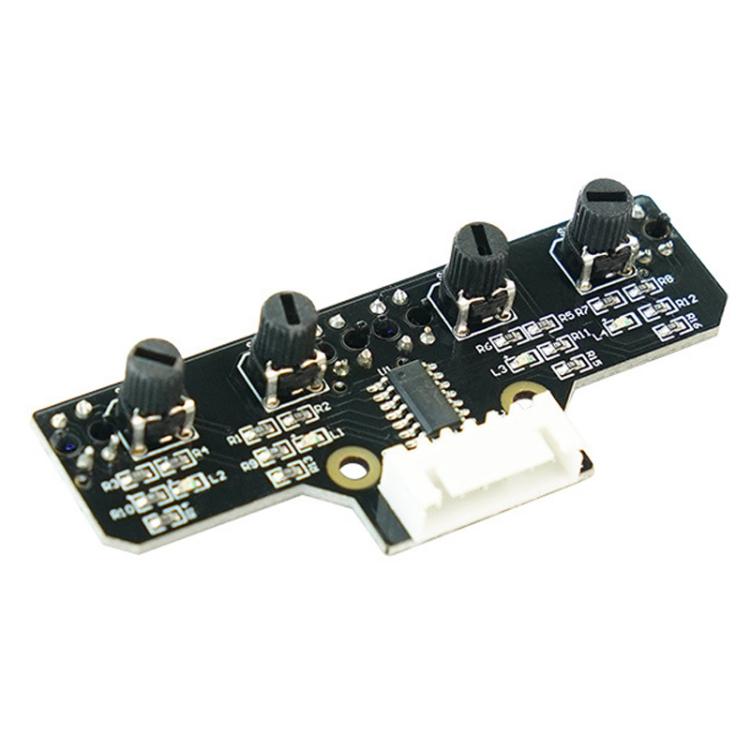

The Yahboom 4 Channel Infrared Tracking Sensor Module is a sensor module designed for smart car robots. It enables the vehicle to accurately follow black lines and navigate complex road surfaces.
- Product Type: Sensor Module
- Compatibility: Smart Car Robot
- Material: PCB
- Color/Variant: N/A
- Key Feature: Infrared tracking
- Intended Use: Everyday use
- Category: Arduino & SCM Supplies

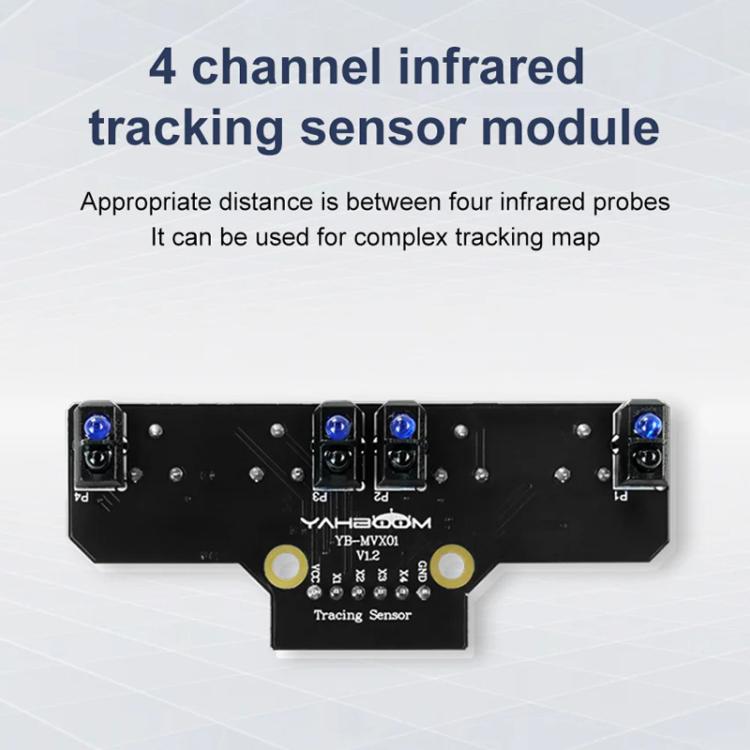

- Tracking Probes: Four tracking probes with optimized spacing layout

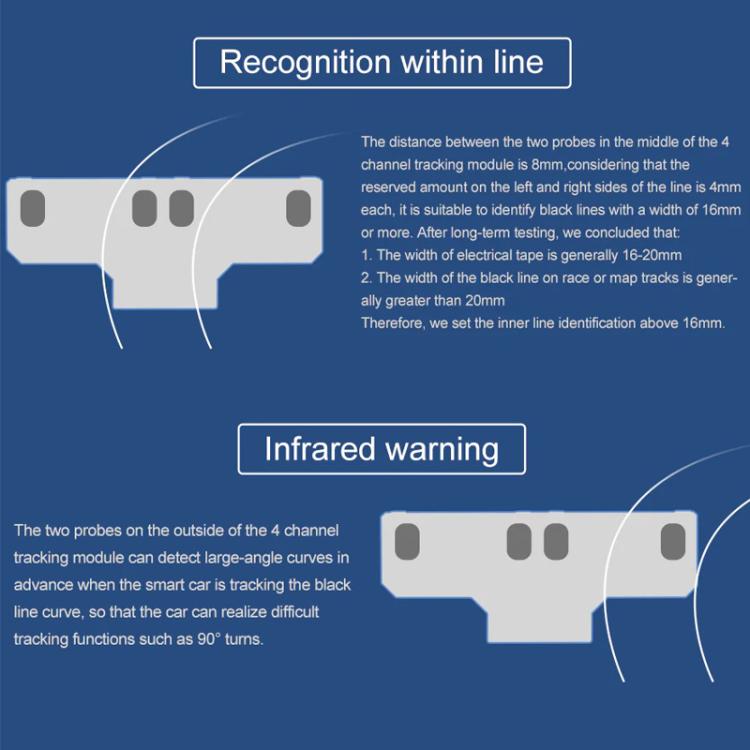

- Inner Probes: Two inner probes for precise black line identification
- Outer Probes: Two outer probes assist inner probes and provide warnings

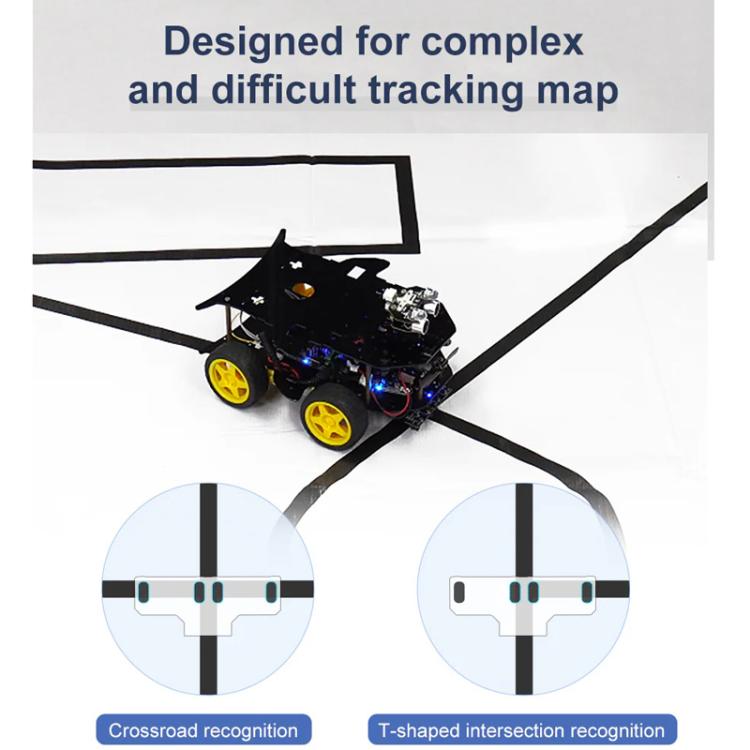

- Turn Recognition: Capable of recognizing 90-degree turns and complex road surfaces

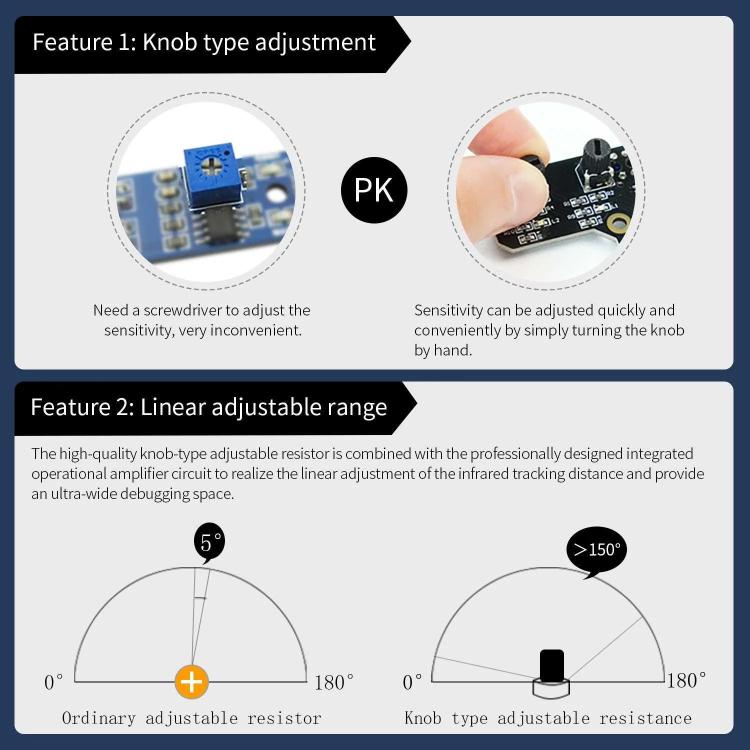

- Adjustment: Knob-type adjustable resistor for sensor sensitivity
- Operational Amplifier Circuit: Professional circuit for enhanced performance
- Connection: Connects using jumper wires or DuPont cables

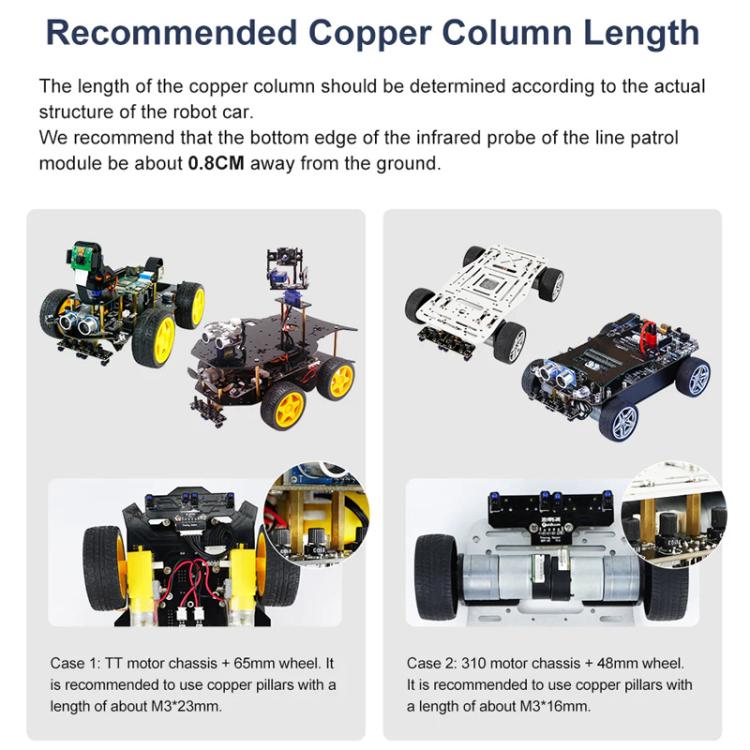

- Installation: Reserved holes for copper columns and screws for expansion

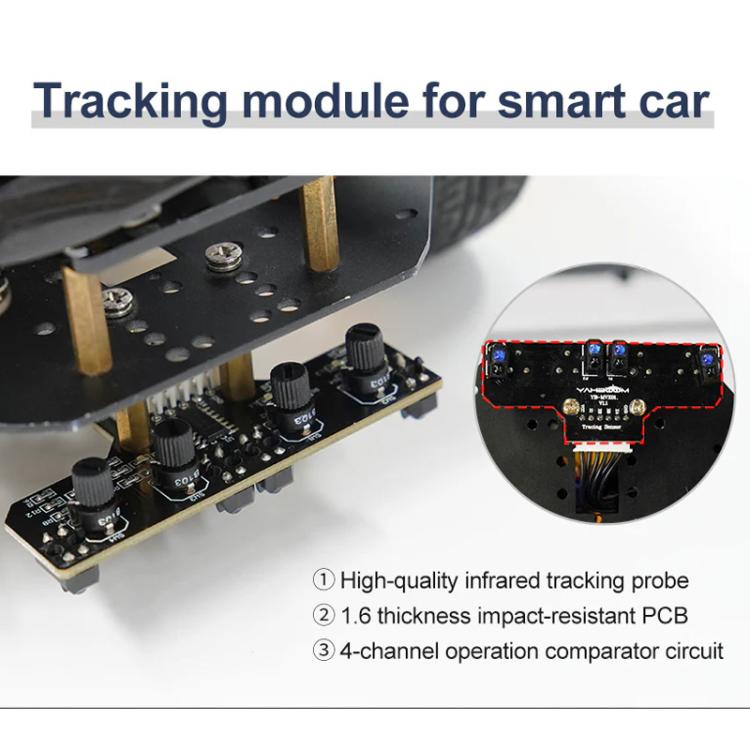

- Infrared Probes: High-quality probes with onboard four-channel comparator circuits
- PCB Thickness: 1.6 inches, shock-resistant

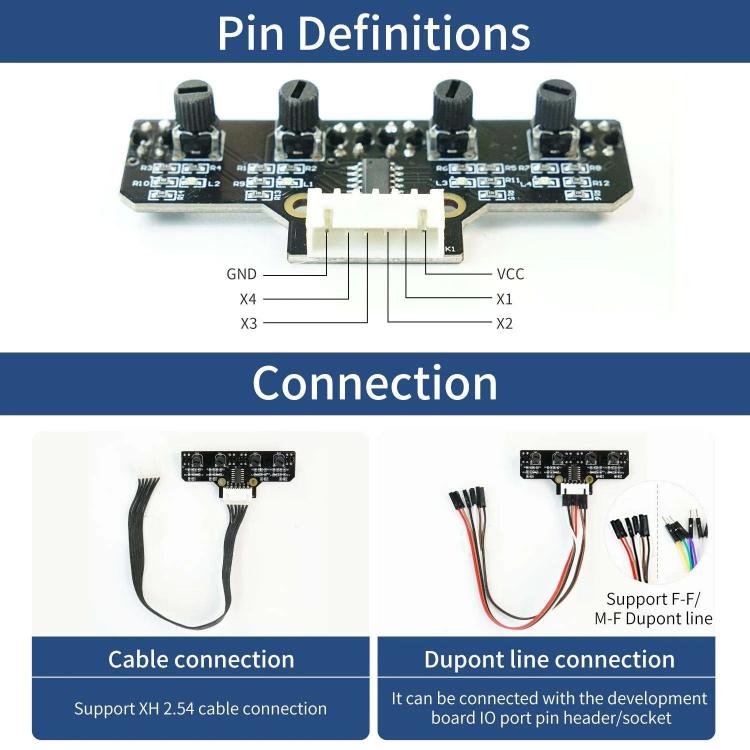

- Pin Design: 6-pin interface with anti-reverse connection design
- Adjustment Range: High-precision knob adjustment with wide linear range
- Reference Materials: Driver source code and graphical programming tools provided
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius

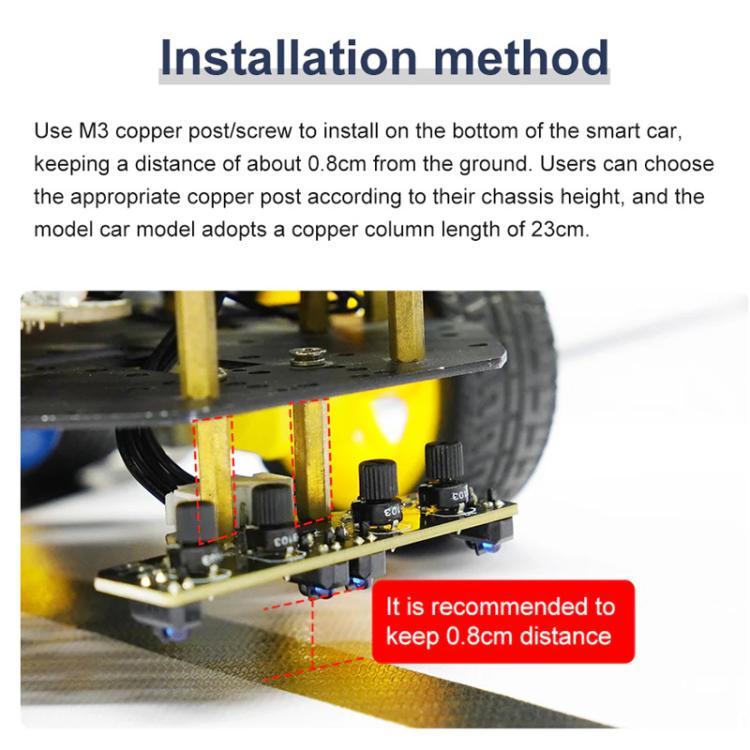

- Installation Hole Diameter: M3 copper post/screw
- Operating Current: 10mA - 50mA
- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)

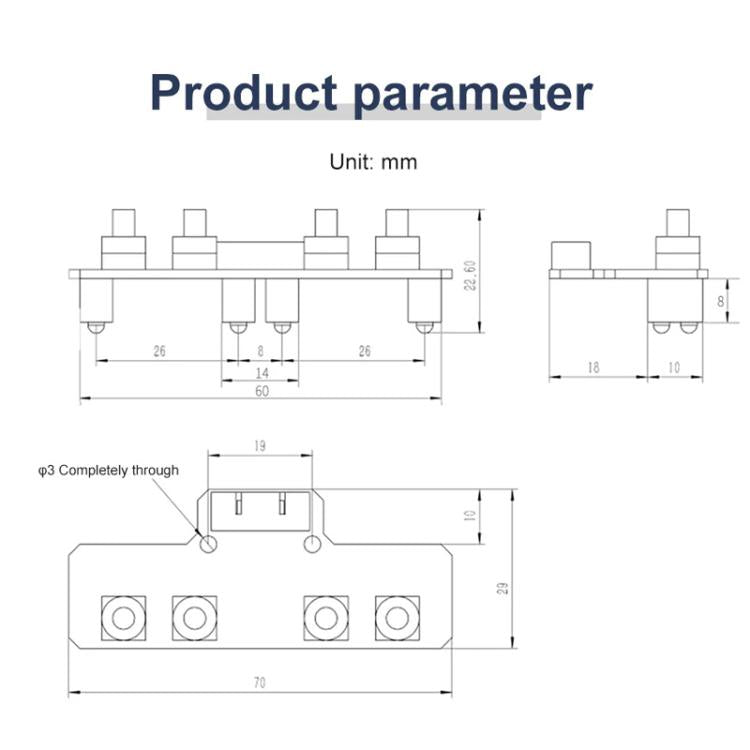

- Product Size: 70 x 29mm
- Output Interface: 6-pin interface with 4 signal output terminals
- Output Signal: TTL level, compatible with microcontroller I/O ports
