Product details
Description
The Yahboom 4 Channel Infrared Tracking Sensor Module is designed for use in smart car robots. It enables precise tracking of black lines and recognition of complex road surfaces.
- Product Type: Sensor Module
- Compatibility: Smart car robots
- Material: PCB
- Key Feature: Adjustable sensitivity
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius
- Operating Current: 10mA - 50mA
- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)

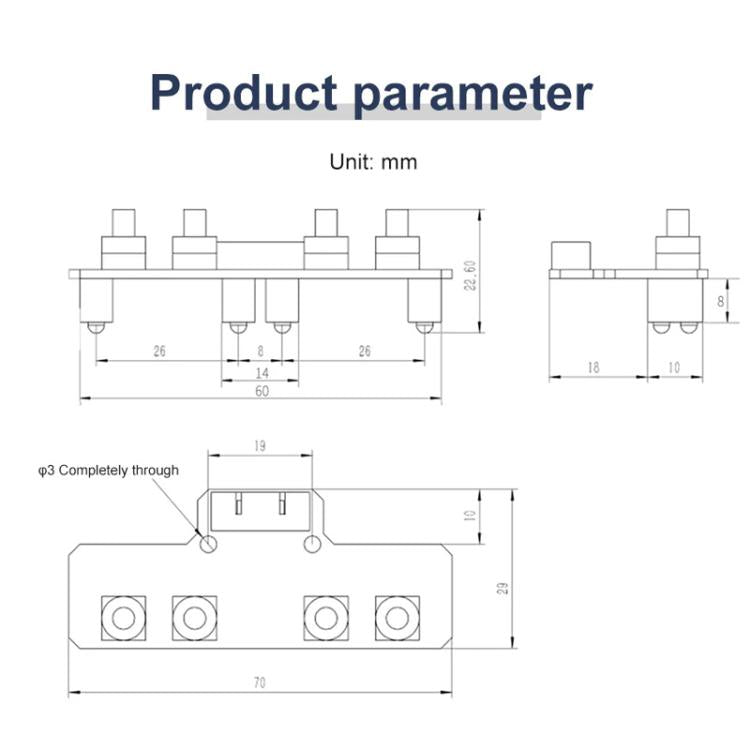

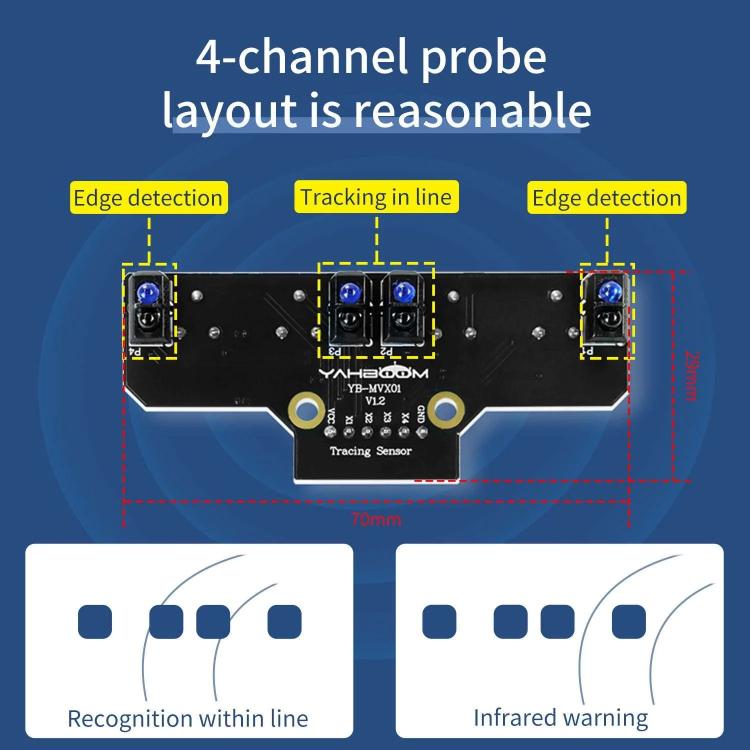

- Product Size: 70 x 29mm

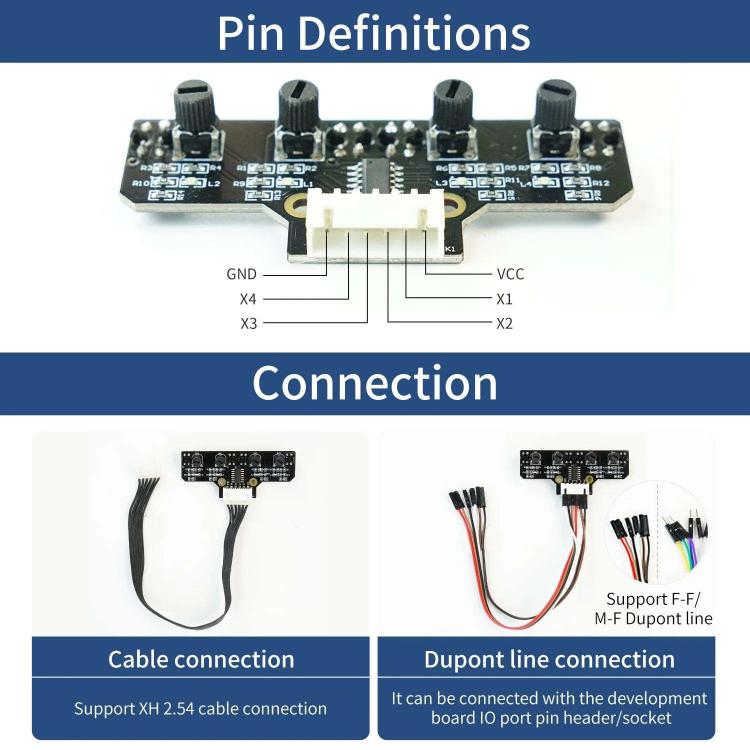

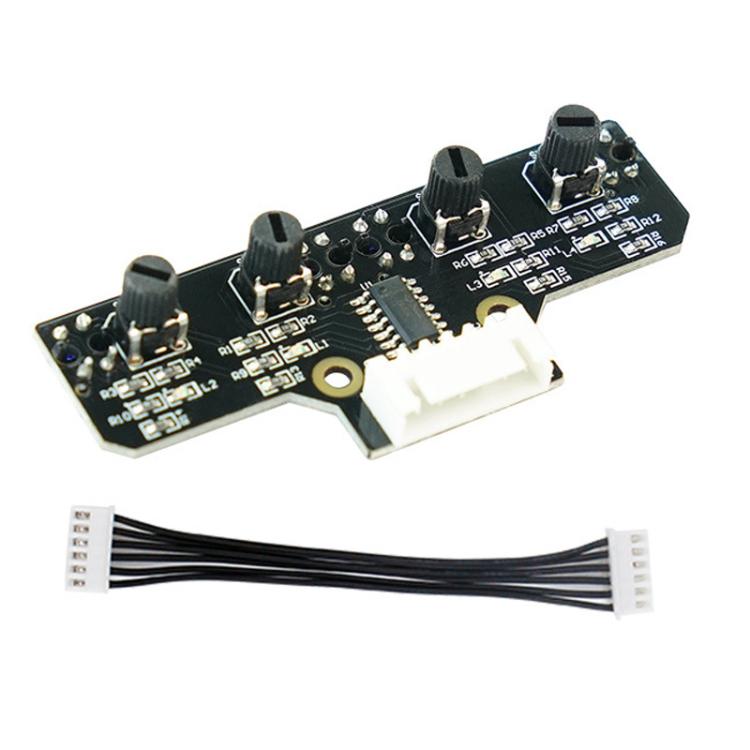

- Output Interface: 6-pin interface (4 signal output terminals, positive and negative power supply)
- Output Signal: TTL level (compatible with microcontroller I/O ports)

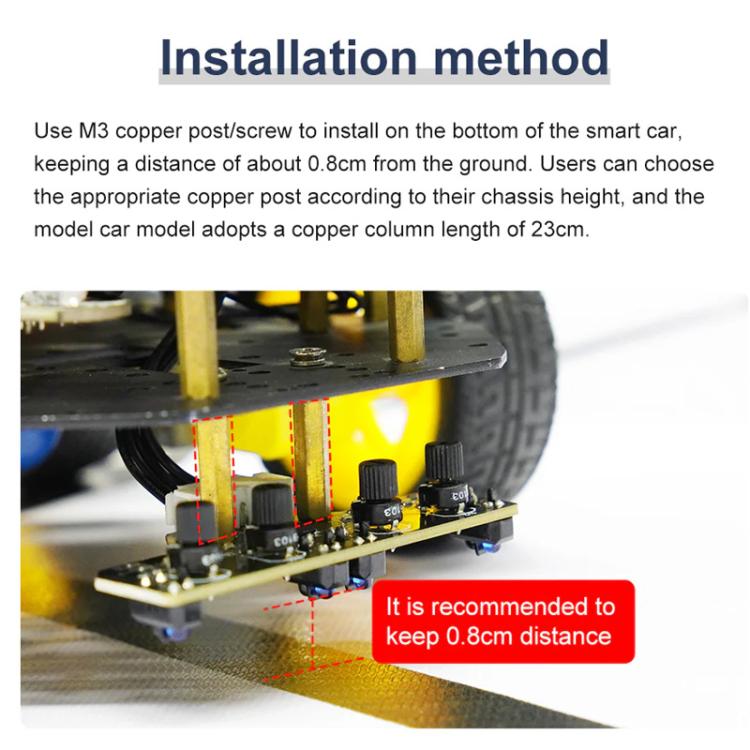

- Installation Hole Diameter: M3 copper post/screw

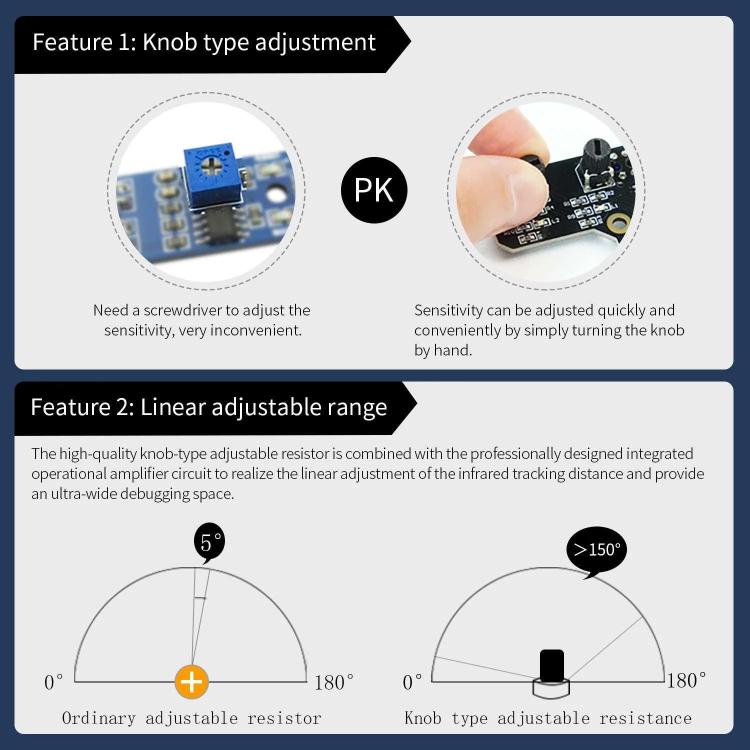

- Knob-type adjustable resistor for sensitivity adjustment

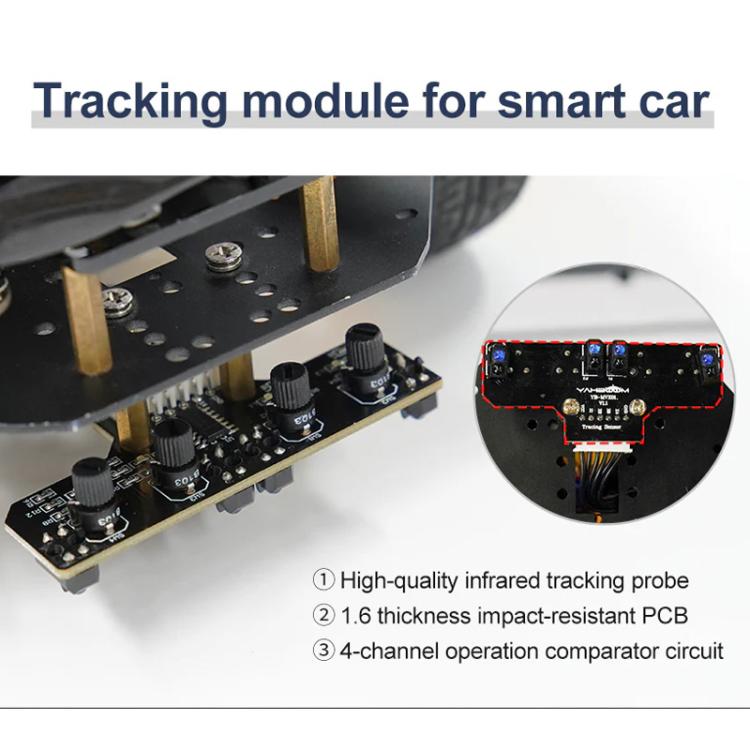

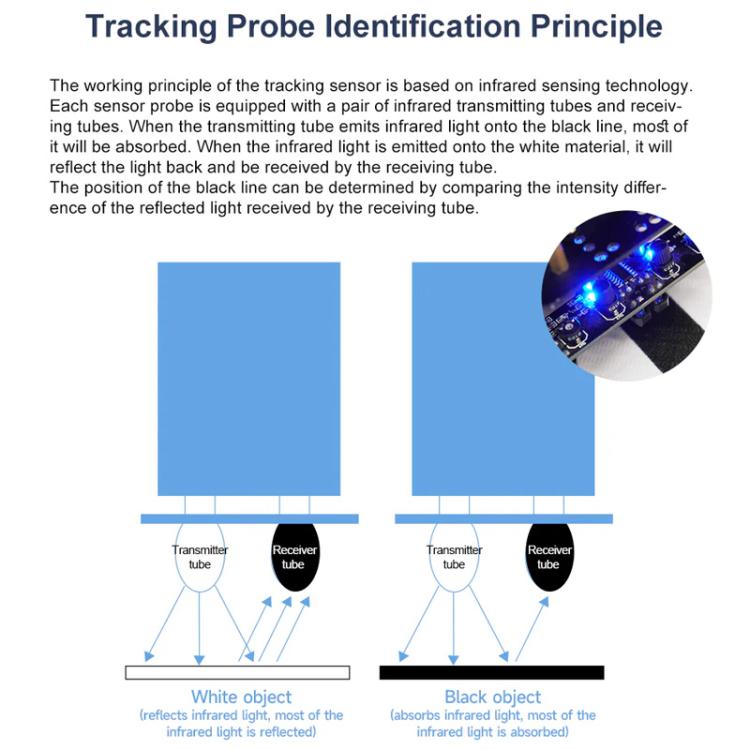

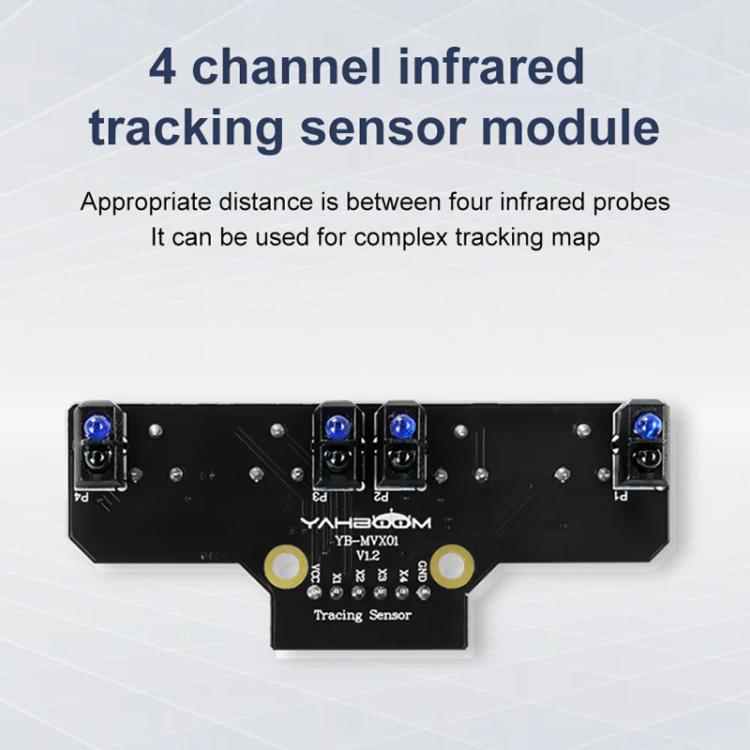

- High-quality infrared probes with onboard four-channel comparator circuits
- Shock-resistant PCB, 1.6 inches thick

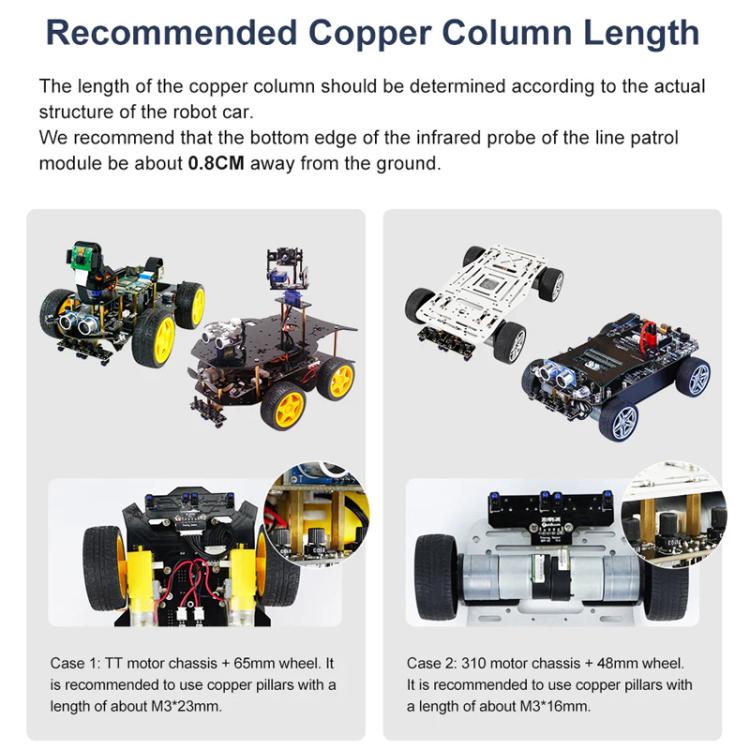

- Reserved holes for installing copper columns and screws for expansion
- Reference materials, driver source code, and graphical programming tools provided
