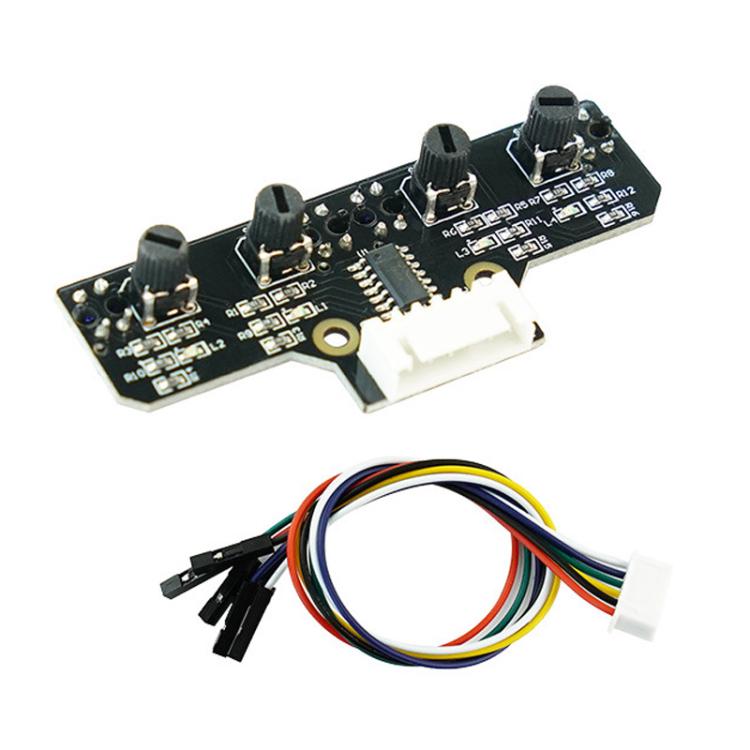

Yahboom 4 Channel Infrared Tracking Sensor Module For Smart Car Robot, Spec: Module+DuPont Cable
Yahboom 4 Channel Infrared Tracking Sensor Module For Smart Car Robot, Spec: Module+DuPont Cable
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
In Stock
Processing: 1–3 days
Couldn't load pickup availability
Product details
Description

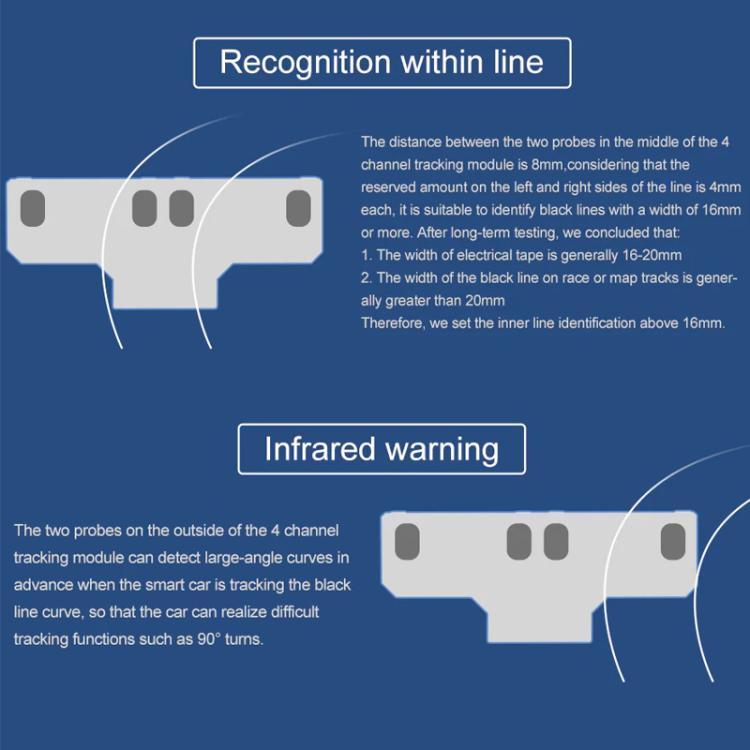

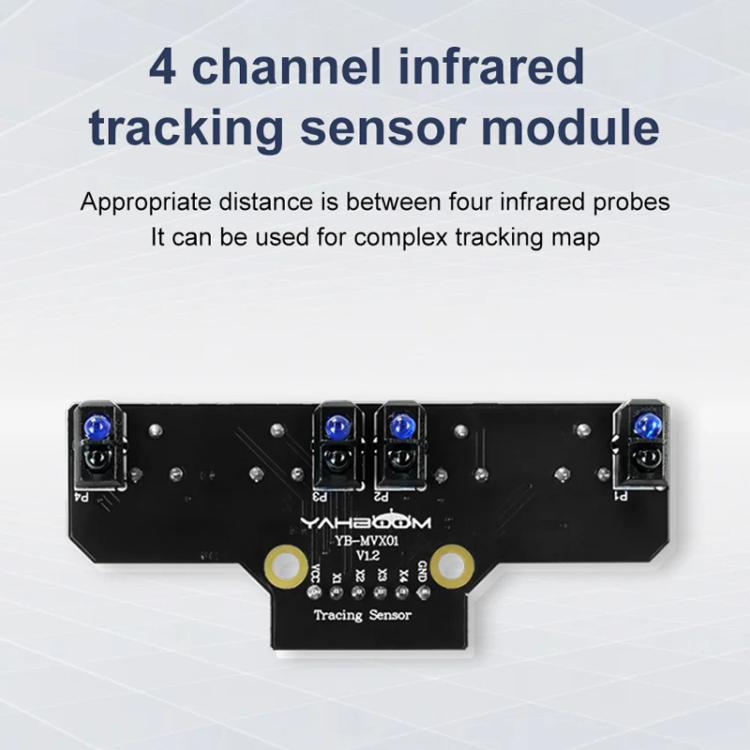

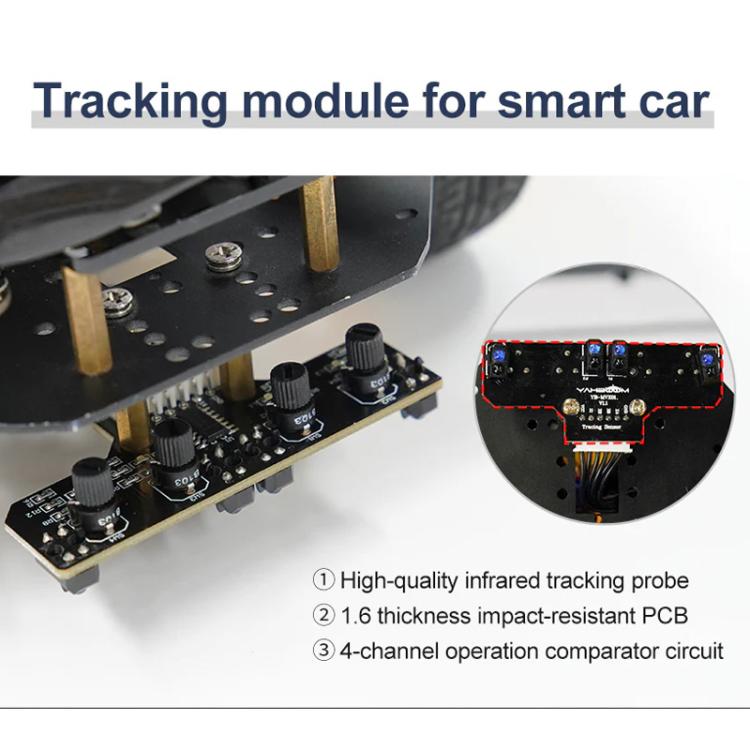

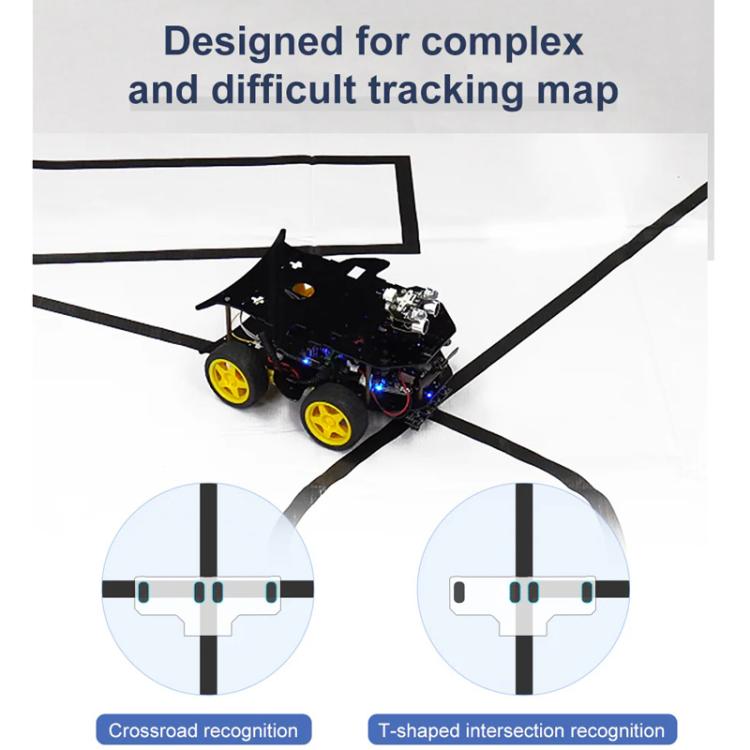

The Yahboom 4 Channel Infrared Tracking Sensor Module is a sensor module designed for smart car robots. It enables the vehicle to detect and follow black lines on various surfaces, including recognizing turns and complex paths.
- Product Type: Sensor Module
- Compatibility: Smart Car Robot
- Material: PCB
- Key Feature: Infrared tracking
- Operating Voltage: 3.3V - 5V
- Operating Temperature: -10 to +50 degrees Celsius

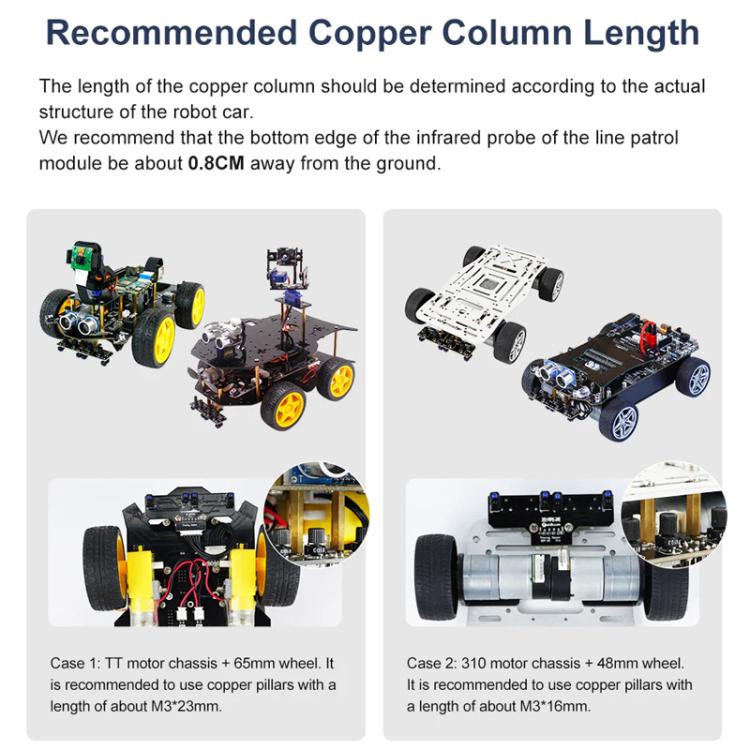

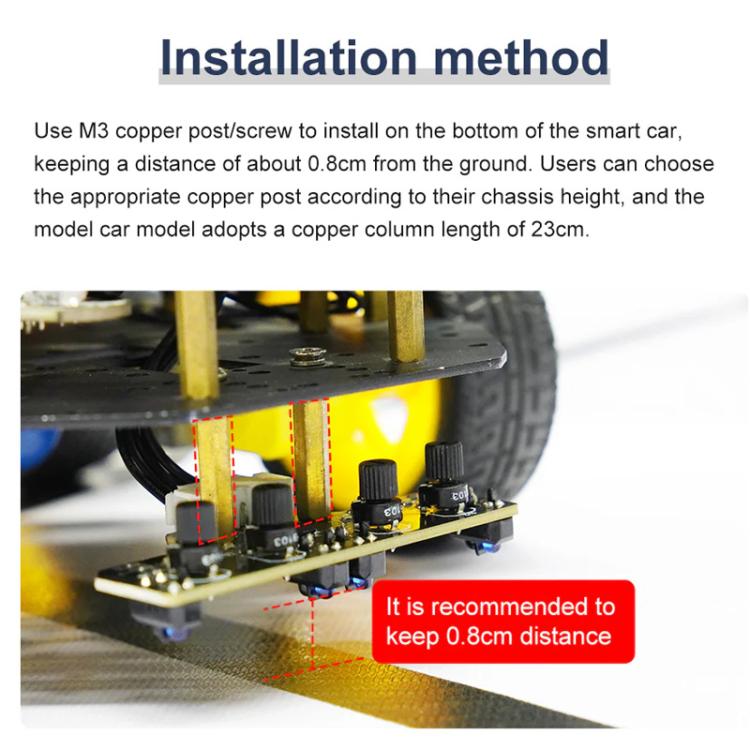

- Installation Hole Diameter: M3 copper post/screw
- Operating Current: 10mA - 50mA
- Detection Distance: Adjustable from 1mm to 50mm (recommended around 8mm)

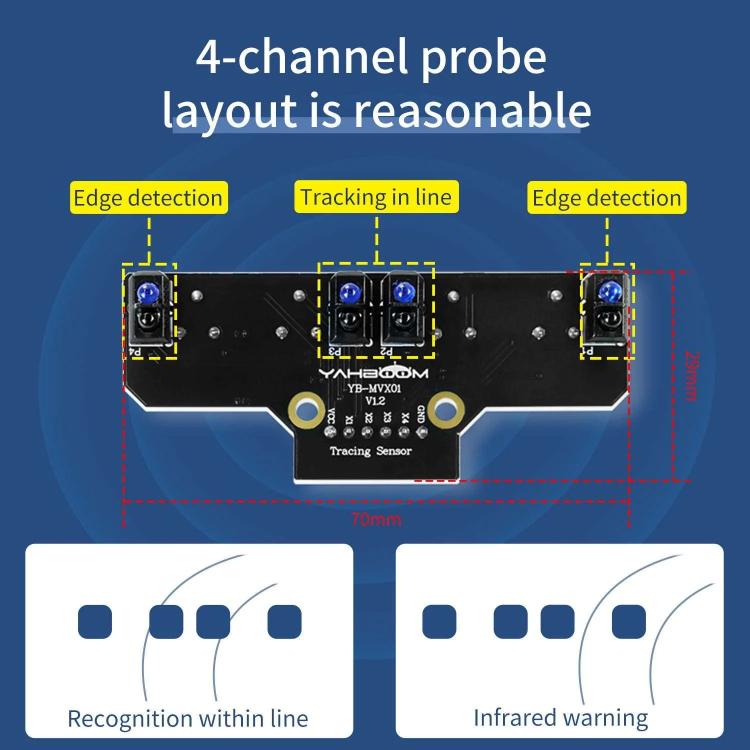

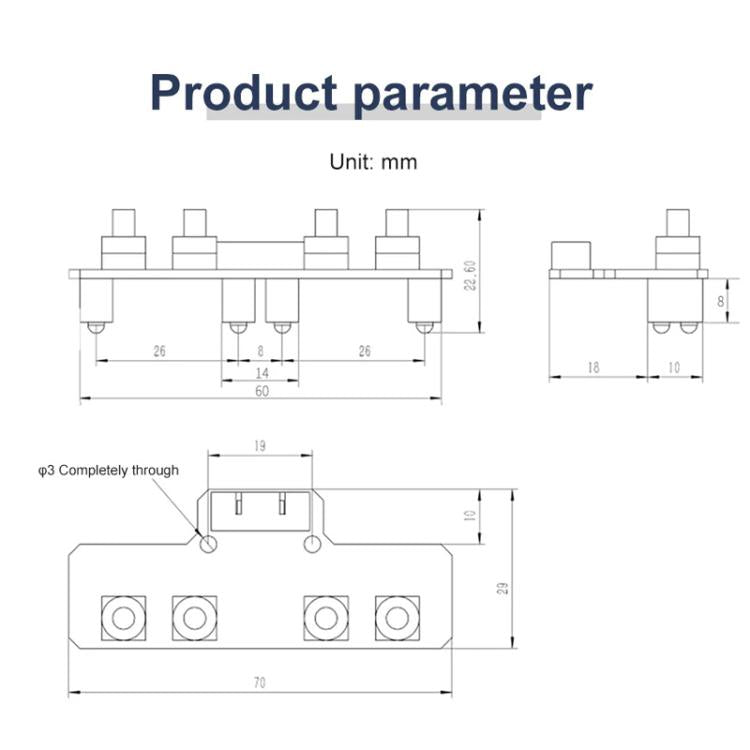

- Product Size: 70 x 29mm

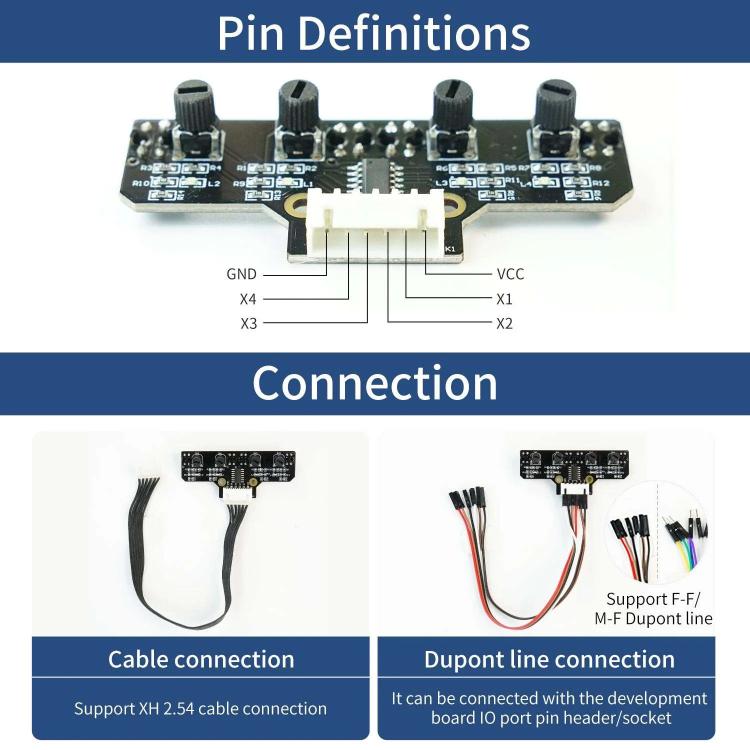

- Output Interface: 6-pin interface, 1234 are 4 signal output terminals, + represents positive power supply, - represents negative power supply
- Output Signal: TTL level (can be directly connected to the I/O port of the microcontroller)

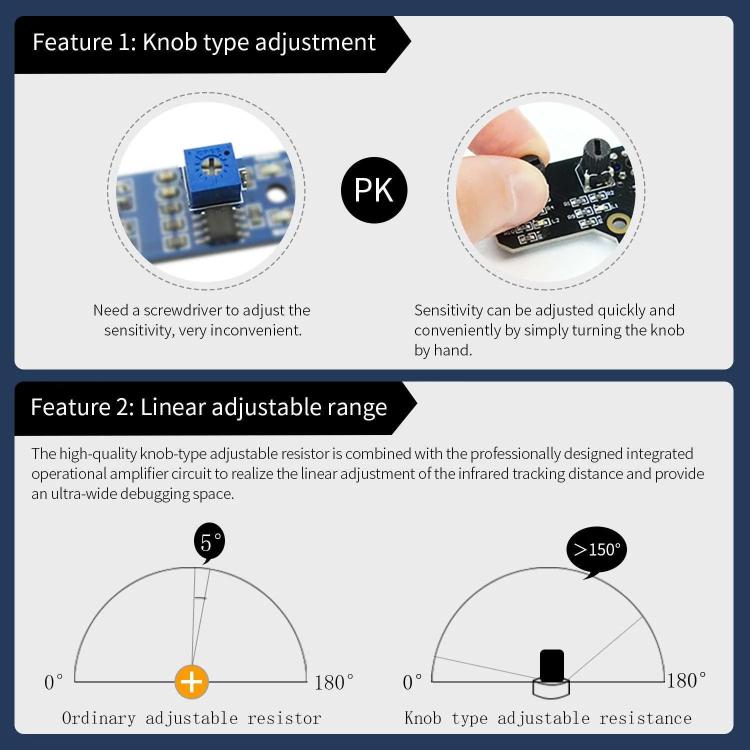

- Features: Four tracking probes, adjustable sensitivity, shock-resistant design, anti-reverse connection
- Additional Resources: Reference materials, driver source code, graphical programming tools provided
