Description

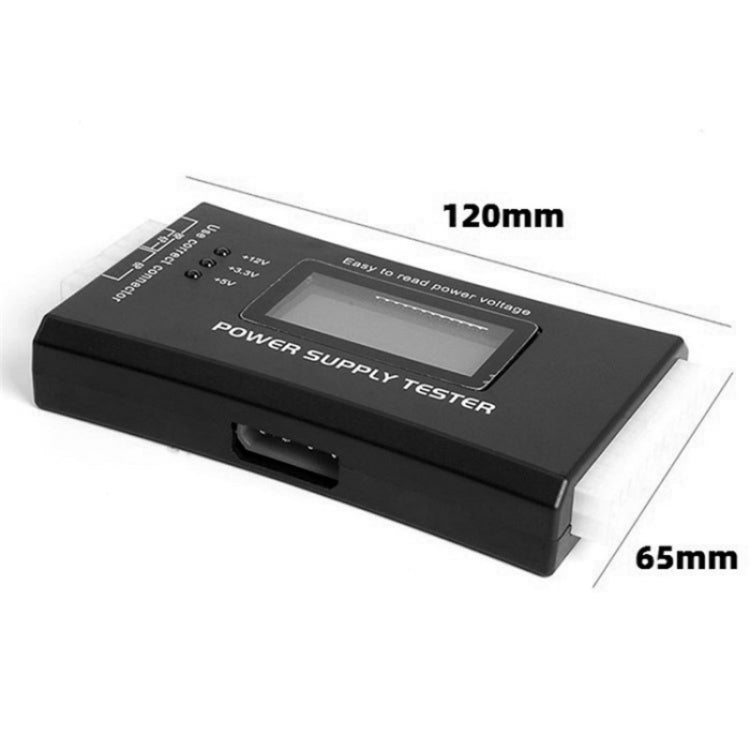

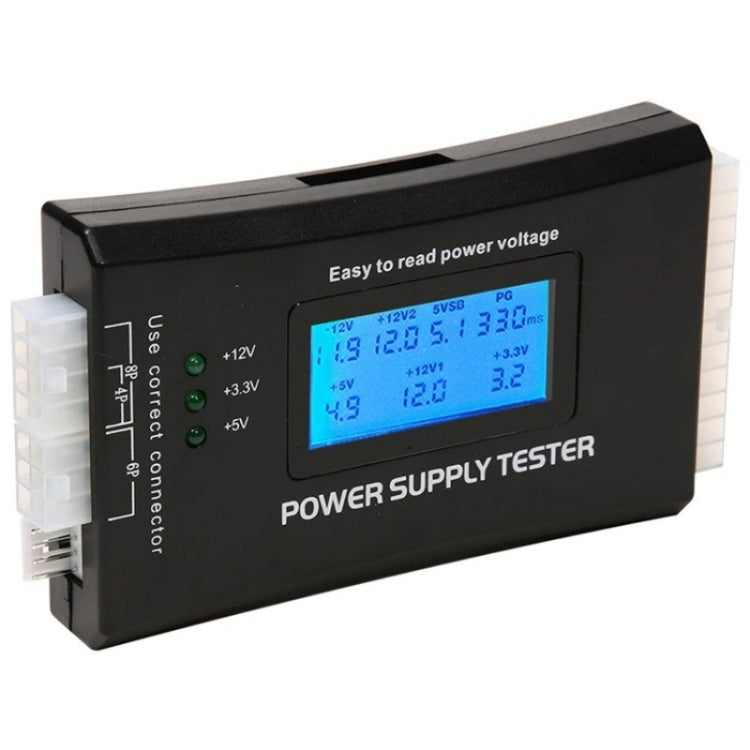

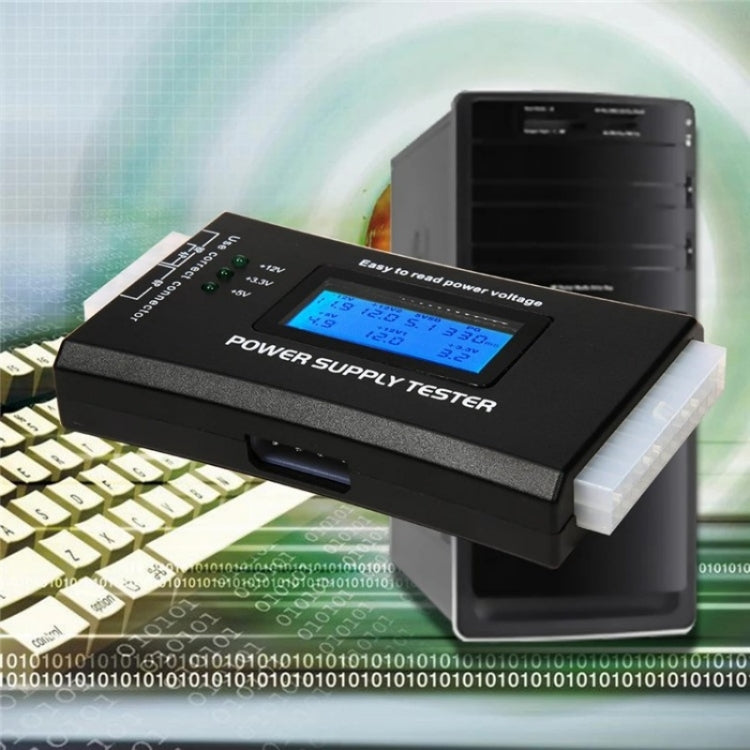

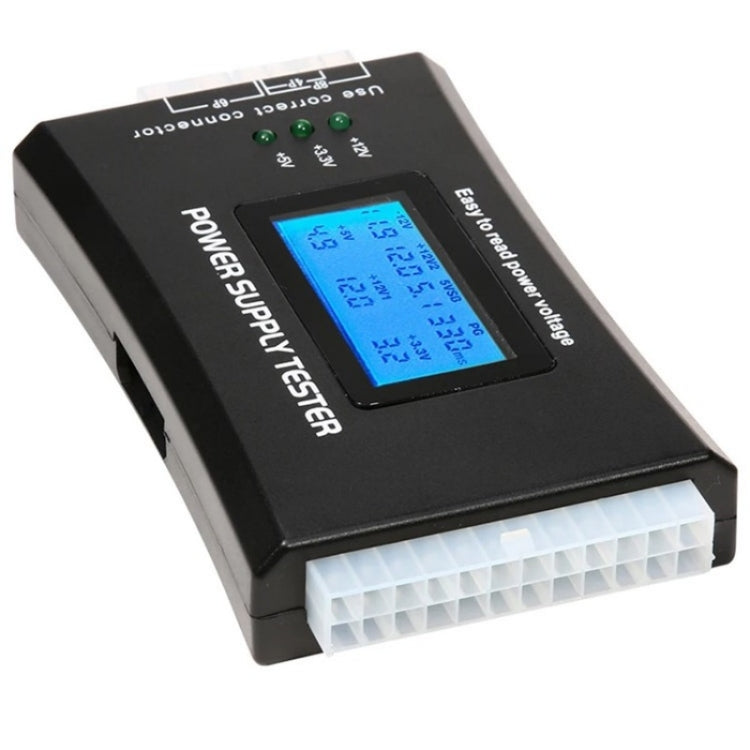

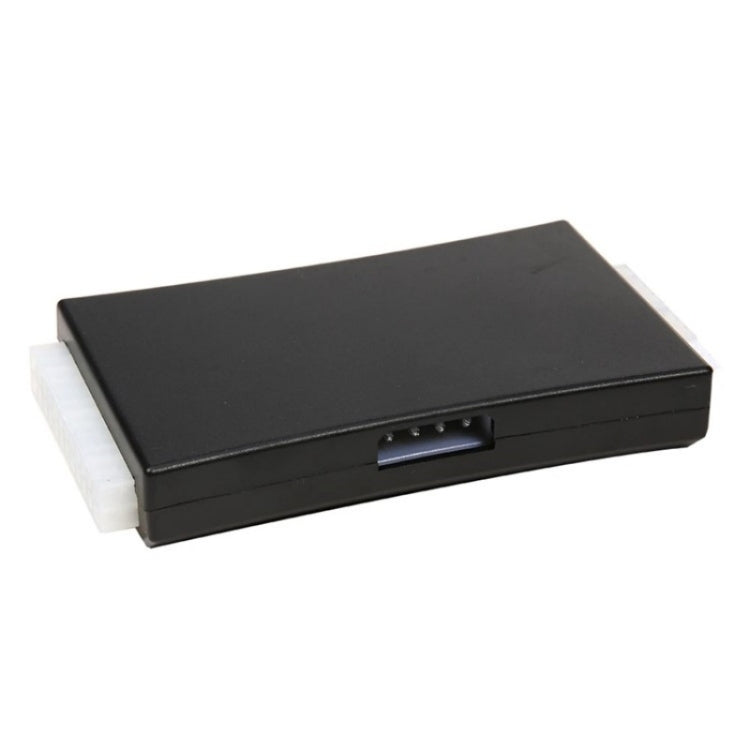

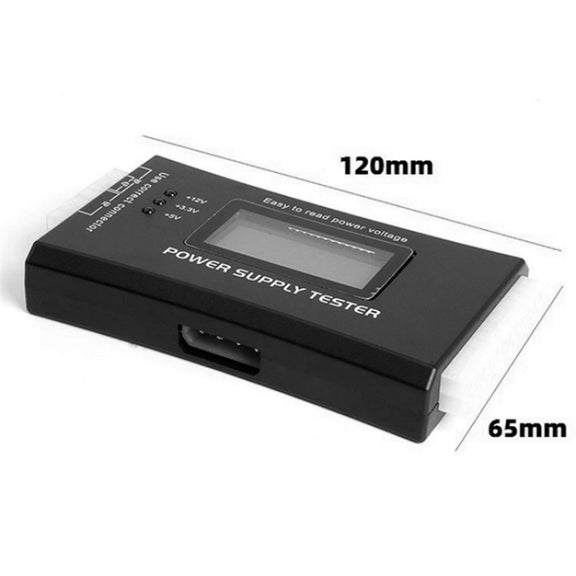

The YNS-001 ATX Measuring Checker Diagnostic Tool is a digital display power supply tester designed for computer power supplies. It allows users to quickly assess the functionality of ATX, BTX, ITX, and TFX power supplies by displaying voltage and PG values on an LCD screen.
- Voltage input: 20/40PIN (ATX power supply)
- Voltage detection: +12V, -12V, +5V, +3.3V, 5VSB, 12VPG
- Connection ports: Floppy, HDD, COROM, SATA, 4pin (P4), 8pin (Dual-CPU), 6pin (PCI-E)

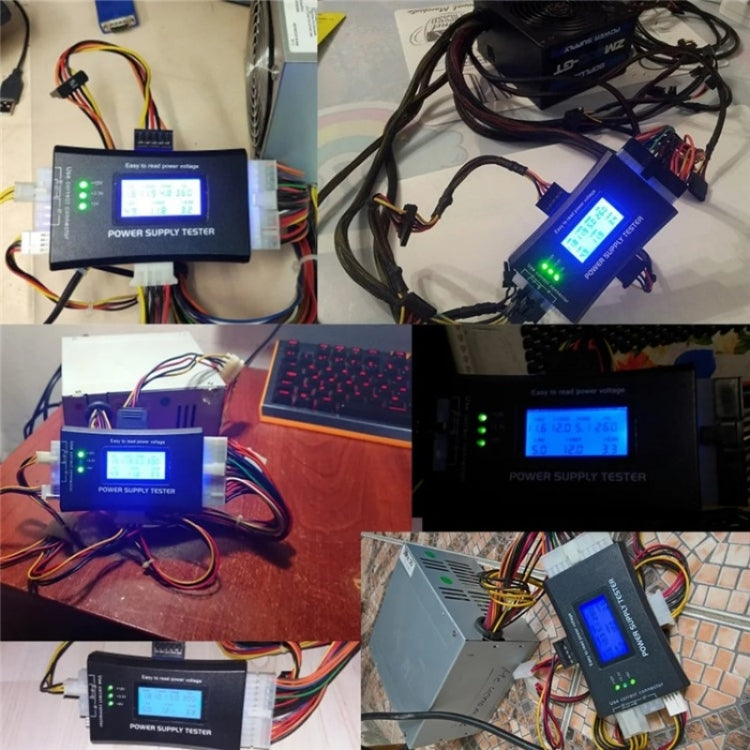

- Operation method: Connect the unloaded 20Pin or 24Pin plug to the tester, turn on the power supply, and listen for two startup beeps.

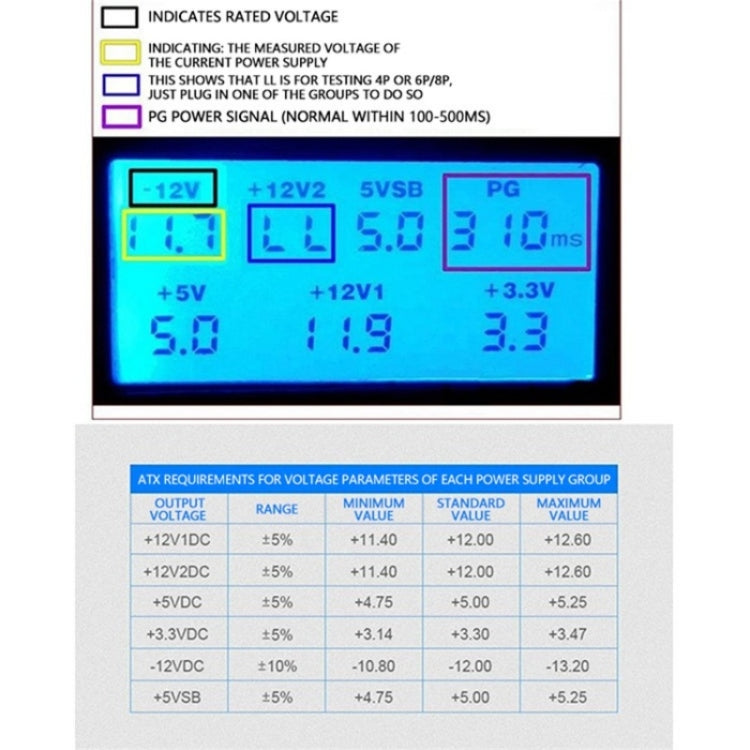

- Indicators: Displays voltage values and alarms for faulty power supplies.
- Note: +3.3V output may not be available on some SATA interfaces depending on the number of wires.
- Warning: Avoid hot-plugging to prevent test data errors.
