Product details
Description

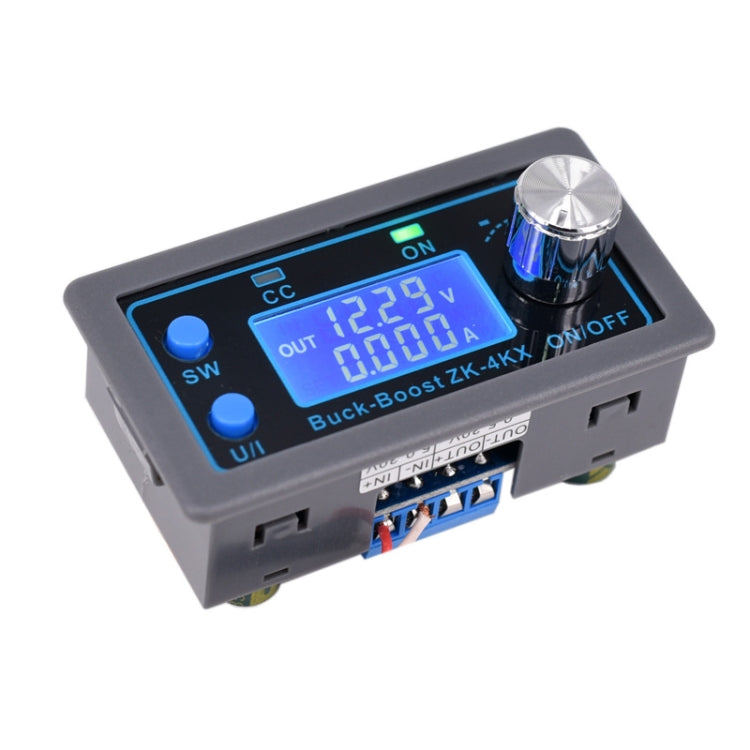

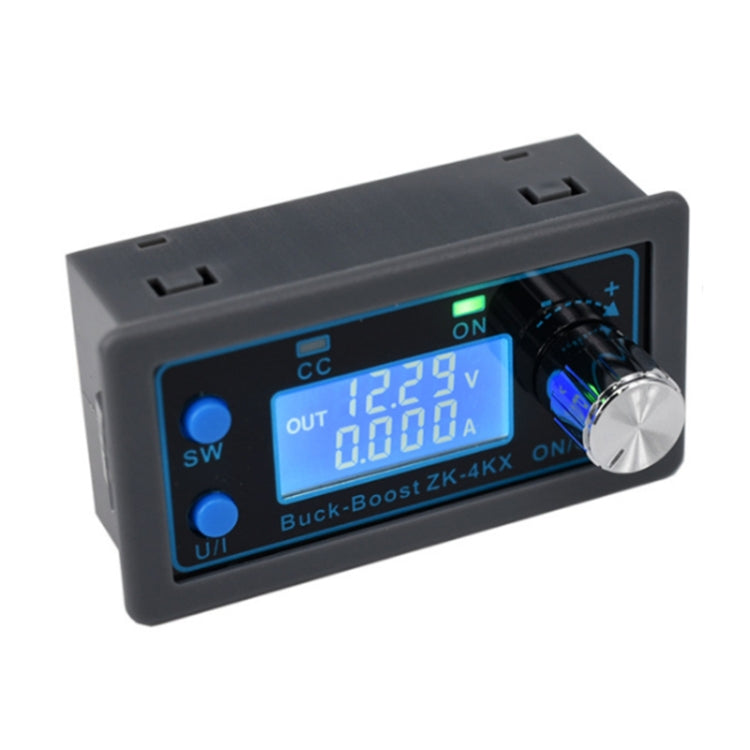

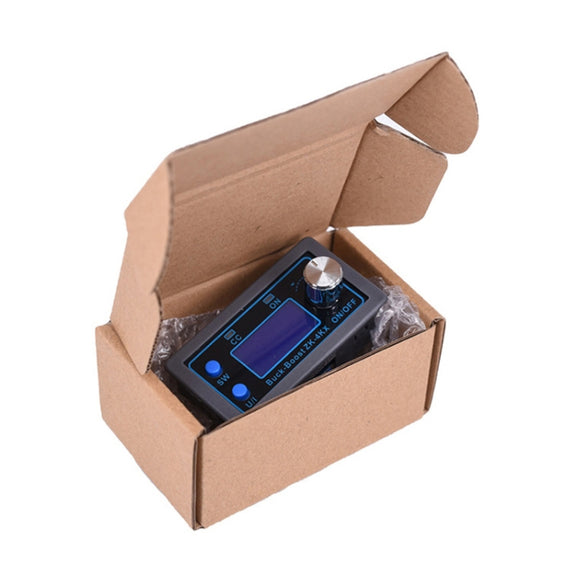

ZK-4KX CNC DC-DC Buck Boost Converter Module is a voltage regulator that adjusts voltage levels. It is suitable for applications requiring precise voltage control, such as powering electronic devices or charging batteries.
- Input Voltage: 5.0-30V
- Output Voltage: 0.5-30V
- Output Current: Stable at 3A, up to 4A with enhanced heat dissipation
- Output Power: 35W (natural heat dissipation), 50W (enhanced heat dissipation)
- Voltage Display Resolution: 0.01V
- Current Display Resolution: 0.001A
- Conversion Efficiency: Approximately 88%
- Soft Start: Yes
- Material: Fiberglass board, electronic components
- Size: 7.9 x 4.3 x 2.6 cm

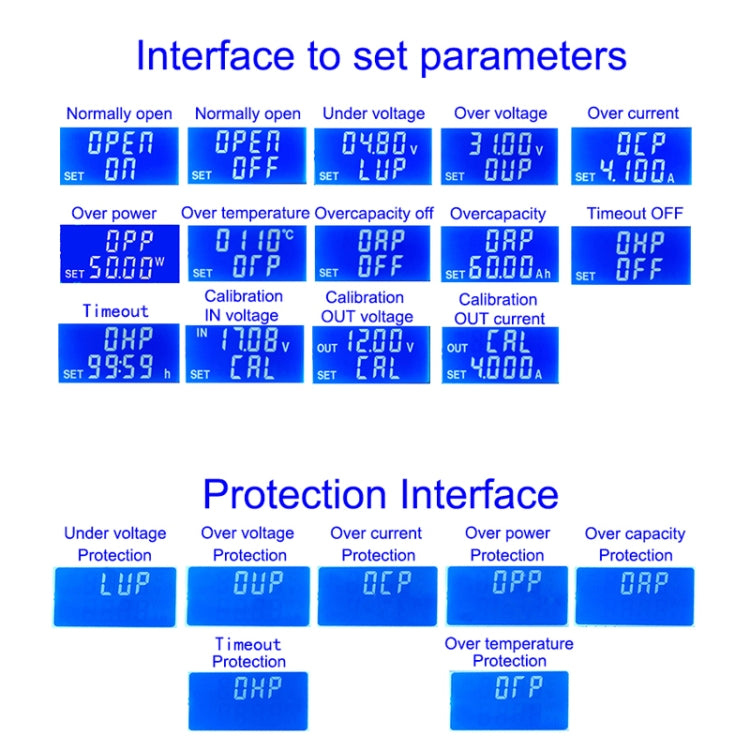

- Protection Mechanisms: Input anti-reverse connection, output anti-reverse irrigation, input under voltage protection (adjustable 4.8-30V), output over voltage protection (adjustable 0.5-31V), output over current protection (adjustable 0-4.1A), overpower protection (adjustable 0-50W), over temperature protection (adjustable 80-110°C), timeout protection (adjustable 0-100h), super capacity protection (adjustable 0-60AH)
- Operating Frequency: 180KHz

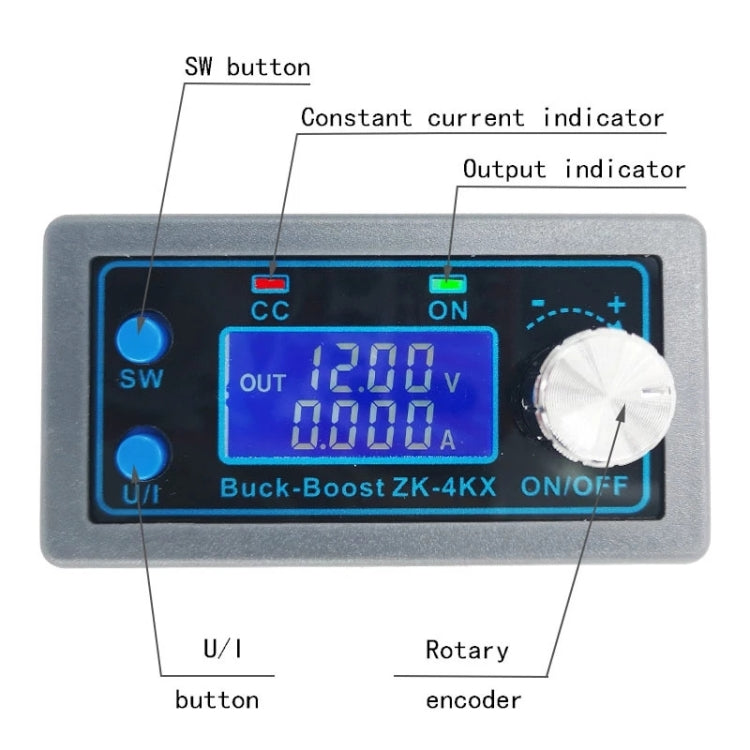

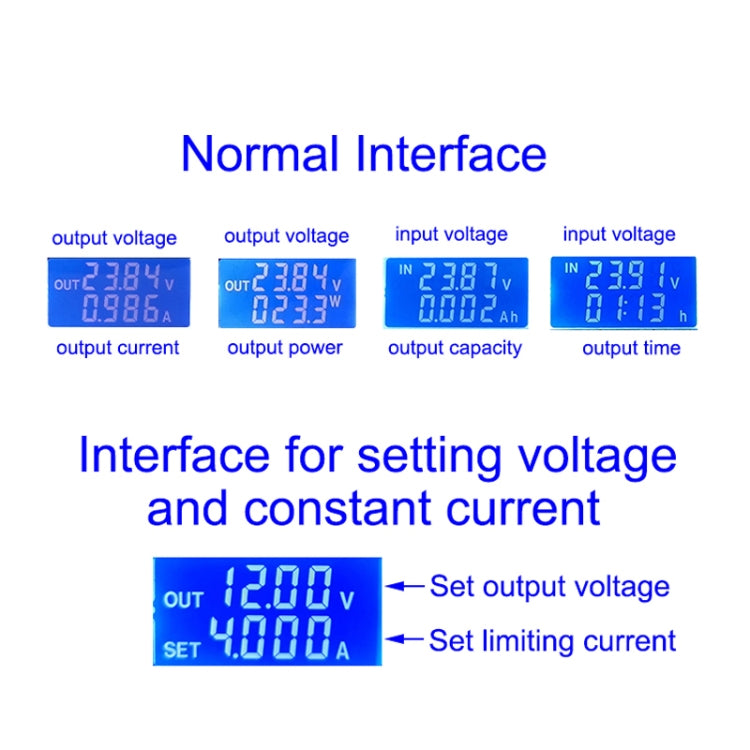

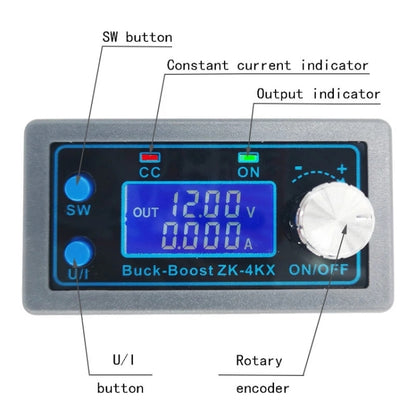

- Display: Large LCD for input/output voltage, output current, output power, output capacity, output time

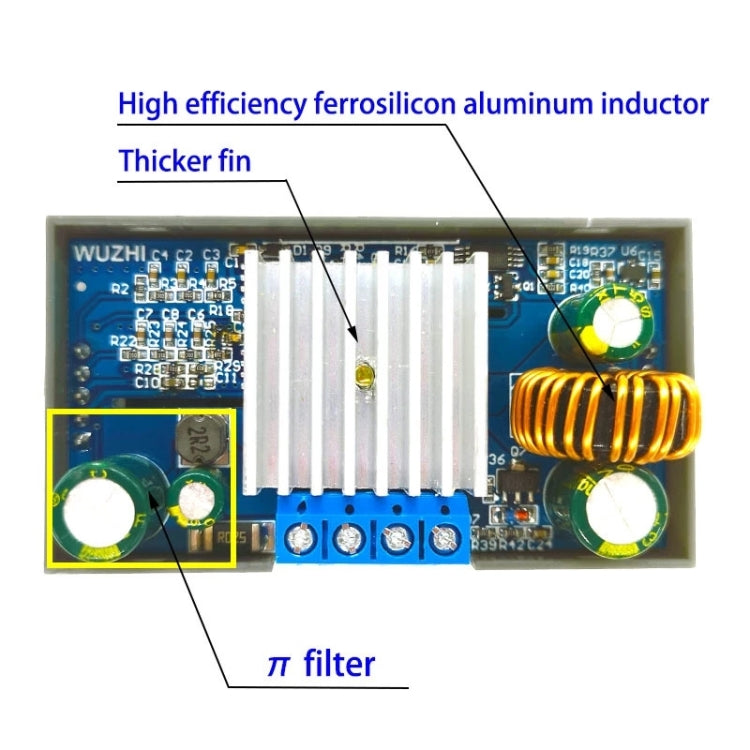

- Cooling: Thick radiator fins for heat dissipation
